MOORING EQUIPMENT 0191
    • MOORING EQUIPMENT 0191
    HVG MARINE MOORING EQUIPMENT 0191

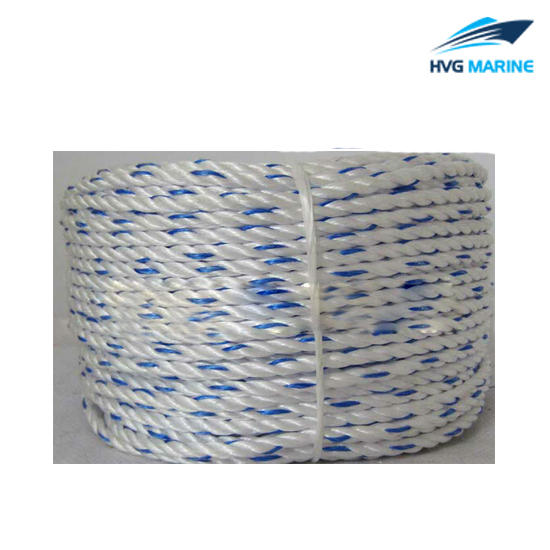

    HVG MARINE MOORING EQUIPMENT 0191: 3 Strand Mooring Rope

    • 1. Type: polyamide staple yarn(thread), polypropylene filament(thread), polypropylene, polyester, polypropylene/polyester blend etc.
    • 2. Features: All products have wide range of application as well as advantages of high strength, low elongation, wearing resistance and anti-corrosion. They are soft and smooth and easy for operation. Meanwhile products can be used to make special anti-static rope.
    • 3. Applications: ships and vessels, fishing, loading and unloading in harbor, power supply construction, petroleum survey, physical exercise wares, national defense scientific and research etc.
    • 4. Packing: Packaged with bags, standard export carton or by customer requirments
    • 5. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
    • 6. Certifications: GL, ABS, CCS, ISO, NK, BV, LR, DNV, RS, etc.
    • 7. Notes: Special specification and marks can be made according to customers requirements

    Technical specification:

    • Main performance:
    • Parameter table:
    Material Polyamide multifilament Polyamide yarn Polypropyle multifilament Polypropylene Polyester Polypropyle and polyester mixed
    Spec.Density 1.14 not floating 1.14 not floating 0.91 floating 0.91 floating 1.27 not floating 0.95 floating
    Melting Point 215℃ 215℃ 165℃ 165℃ 260℃ 165℃/260℃
    Abrasion Resistance Very Good Very Good Medium Medium Good Good
    U.V.resistance Very Good Very Good Medium Medium Good Good
    Temperature resistance 120℃ max 120℃ max 70℃ max 70℃ max 120℃ max 80℃ max
    Chemical resistance Very Good Very Good Good Good Good Good
    Specification PA multifilament PA yarn PP multifilament Polypropylene Polyester PET/PP mixed
    Dia. Cir. Ktex KN Ktex KN Ktex KN Ktex KN Ktex KN Ktex KN
    4 1/2 10 3.7 10 2.6 6.3 2.3 6 2.1 12 2.9 7 2.8
    6 3/4 22 7.9 22 6 18 6.5 17 5.9 27 5.6 17.5 6.8
    8 1 40 13.8 40 10.9 32 11.4 30 10.4 48 10 31 11.9
    10 1-1/4 62 21.2 62 15.7 47 16.8 45 15.3 76 15.6 48.5 18.2
    12 1-1/2 89 30.1 89 24.1 68 23.9 65 21.7 110 22.3 69.9 25.7
    14 1-3/4 121 40 121 33 95 32.9 90 29.9 148 31.2 95.1 34.7
    16 2 158 51.9 158 42.5 121 40.7 115 37 195 39.8 124 44.8
    18 2-1/4 200 64.3 200 53.9 155 51.9 148 47.2 245 49.8 157 56.1
    20 2-1/2 247 79.2 247 66.7 189 62.6 180 56.9 303 62.3 194 68.7
    22 2-3/4 299 94 299 80.4 231 75 220 68.2 367 74.7 235 82.1
    24 3 355 112 355 96.3 273 87.7 260 79.7 437 89.6 279 96.3
    26 3-1/4 417 129 417 111.5 320 101 305 92.2 512 105 328 113
    28 3-1/2 484 149 484 127 373 115 355 105 594 120 380 130
    30 3-3/4 555 169 555 143 425 132 405 120 682 134 437 148
    32 4 632 192 632 161 483 146 460 132 778 154 497 167
    36 4-1/2 800 240 800 200 614 182 585 166 982 190 629 210
    40 5 987 294 987 241 756 221 720 201 1215 235 776 257
    44 5-1/2 190 351 190 289 924 266 880 242 1468 275 939 308
    48 6 1420 412 1420 338 1092 308 1040 280 1750 329 1110 364
    52 6-1/2 1670 479 1670 393 1281 357 1220 325 2050 384 1320 424
    56 7 1930 550 1930 450 1491 408 1420 371 2380 439 1520 489
