HVG MARINE MOORING EQUIPMENT 0190

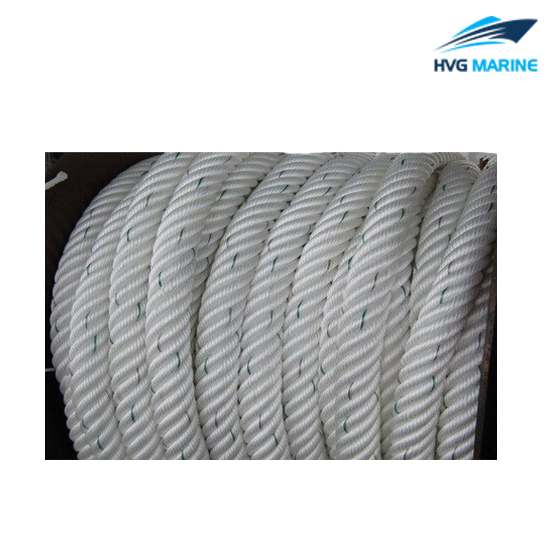

HVG MARINE MOORING EQUIPMENT 0190: Nylon Single Filament 6-Ply Composite Rope

1. Type: polyamide staple yarn/nylon single yarn, polypropylene filament/nylon single yarn, polyester/nylon single yarn ect.
2. Features: it has superior wearing resistance, which is doubled more than of normal chemical-fiber rope and that cables therefore it has been widely used in tying and towing of ships and vesels
3. Applications: the products are mainly used in field of ocean transportation, heavy industry, shipbuilding, petroleum survey and harbor operation etc.
4. Packing: Packaged with bags, standard export carton or by customer requirments
5. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
6. Certifications: GL, ABS, CCS, ISO, NK, BV, LR, DNV, RS, etc.
7. Notes: Special specification and marks can be made according to customers requirements

Material	Polyamide multifilament/ nylon monofilament	Polypropylene multifilament/nylon monofilament	Polyester multifilament/nylon monofilament
Spec.Density	1.14 not floating	0.98 floating	1.22 not floating
Melting point	215℃	165℃	260℃
Abrasion resistance	Very Good	Good	Very Good
U.V.resistance	Very Good	Medium	Good
Temperature resistance	120℃ max	70℃ max	120℃ max
Chemical resistance	Very Good	Good	Good

Specification		Polyamide multifilament/nylon monofilament		Polypropyle multifilament/nylon monofilament		Polyester multifilament/nylon monofilament
Dia.	Cir.	Ktex	KN	Ktex	KN	Ktex	KN
28	3-1/2	495	156	350	131	594	138
32	4	640	197	485	167	778	177
36	4-1/4	815	246	615	209	982	219
40	5	1010	296	755	252	1215	270
44	5-1/2	1260	354	925	303	1475	321
48	6	1450	415	1090	353	1750	378
52	6-1/2	1690	482	1280	408	2050	442
56	7	1970	553	1490	467	2380	505
60	7-1/2	2250	631	1710	534	2730	562
64	8	2570	712	1940	603	3110	653
72	9	3250	889	2460	758	3930	813
80	10	4020	1087	3050	932	4850	997
88	11	4870	1296	3690	1118	5870	196
96	12	5790	1632	4380	1320	6990	1415
