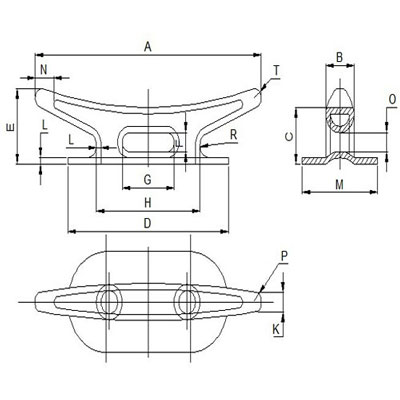

Dimension(in)

A

B

C

D

E

F

G

H

K

L

M

N

O

P

R

T

24”

3

4-1/2

17

6

1-1/2

5-1/2

11

1-1/2

1/2

8

2

1-1/2

9/16

1

3/4

30”

4

5-5/8

20-1/4

7

2-3/8

6-7/8

14

3-1/4

1/2

9-1/2

2

2-3/8

1-1/4

1-3/8

7/8

36”

5

6-3/4

23-1/2

8

3-1/4

8-1/4

17

4

9/16

11

2-1/2

3-1/4

1-1/2

1-3/4

1

42”

6

7-7/8

26-3/4

9

4-1/8

9-5/8

20

4-3/4

5/8

12-1/2

2-3/4

4-1/8

1-7/8

2-1/8

1-1/8

48”

7

9

30

10

10

11

23

5-1/2

3/4

14

4

5

2

2-1/2

1-1/4
