HVG MARINE MOORING EQUIPMENT 0182

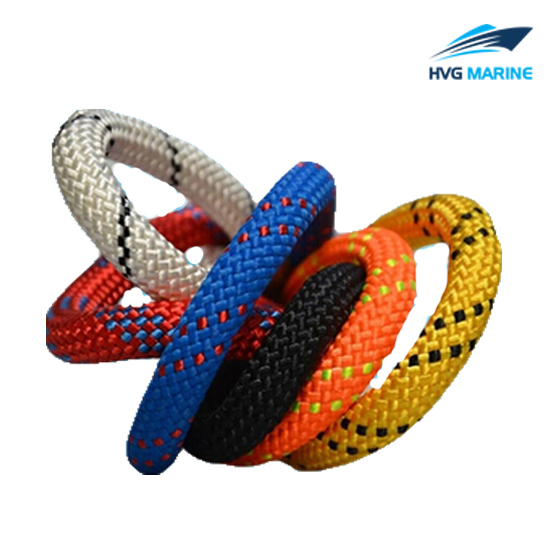

HVG MARINE MOORING EQUIPMENT 0182: UHMW PE Double Braided Rope

1. Material: UHMWPE yarns with special coating, strongest fiber rope in the world, 14% of the wire rope weight of the the same MBL
2. Specific gravity: 0.97
3. Melting point: 150℃
4. Elongation: 4% at break
5. Features: good resistance to UV and chemicals, superior abrasion resistance, no difference in tensile strength when wet or dry, workable below -20℃
6. Application: shipbuilding, ocean transportation, national defense, military industry, sea petroleum, harbor operation, etc.
7. Packing: Packaged with bags, standard export carton or by customer requirments
8. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
9. Certifications: GL, ABS, CCS, ISO, NK, BV, LR, DNV, RS, etc.
10. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Parameter table:

Size		Lineardensity	Weight	Breaking strength
Size		Lineardensity	Weight	BS(Yarns T/S-41g/d)		BS(Yarns T/S-32g/d)
Cir(inch)	Dia(mm)	ktex	220m(kg)	ton	KN	ton	KN
3-1/2	28	490	116	76.2	748	57.5	562
4	32	621	148	91.2	895	68.5	671
4-1/2	36	767	182	107.3	1052	80.4	789
5	40	868	206	131	1285	98.2	964
5-1/2	44	955	227	157	1540	118	1158
6	48	1137	270	185	1815	139	1364
6-1/2	52	1342	295	212	2080	159	1560
7	56	1547	368	246	2408	184	1805
7-1/2	60	1784	392	265	2599	199	1952
8	64	2021	480	296	2903	222	2178
9	72	2598	617	365	3580	274	2688
10	80	3195	773	444	4355	333	3266
11	88	4450	1060	519	5090	390	3825
12	96	5700	1350	606	5943	455	4463
13	104	7670	1688	695	6810	520	5096
