HVG MARINE CABLE 0034

HVG MARINE CABLE 0034: MGH Marine Power Cable 0.6/1KV

MGH Marine Power Cable
Standards : DIN 89160

MGH Marine Power Cable Applications

Halogen free cable is used for fixed laying on ships and off-shore units, use in all rooms and on open board, as power,signalling and control cables.
A more specic design (e. g. screening) is necessary for installations in radio stations or above the upper metallic deck.
The cables meet the ame test requirements for bunched cables acc. to IEC 60332-3 and IEEE 45-18.13, and perform to the SOLAS requirements.
For xed installations on ships and offshore-units in all locations.Meet the Flame test requirements for bunched cables according to IEC 60332-3-22&IEEE 45-18.13.Free halogen materials ensures that non corrosive and low toxic gases are emitted in case of fire.
All cables materials are free of halogens. This design ensures that non corrosive and low toxic gases are emitted in case of re.
Therefore, these cables are especially suitable for the installation on passenger ships.

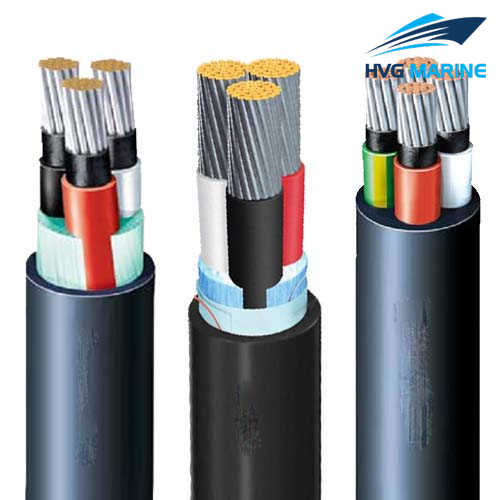

MGH Marine Power Cable Construction

1.Conductor : Annealed Stranded Bare Copper,Class 2
2.Insulation : HEPR (Crosslinked Hard grade Ethylene Propylene)
3.Filler or Tape
4.Sheath : Polyolefin
