HVG MARINE CABLE 0031: MGG Marine Power Cable for Passenger Ship

Applications

Marine shipboard power cables are used for power systems of cargo ships, Passenger vessels and Special-purpose vessels.

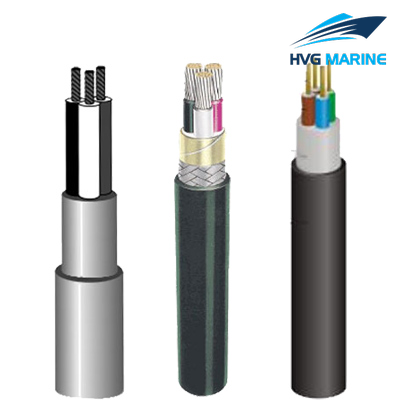

MGG Marine Power Cable Construction

1.Conductor:Annealed Stranded Bare Copper,Class 2
2.Insulation:HEPR (Crosslinked Hard grade Ethylene Propylene)
3.Filler or Tape
4.Sheath:Cross linked polychloroprene rubber

MGG Marine Power Cable standards

International:IEC 60092-351;IEC 60092-353; IEC 60092-359;IEC 60332-3-22
National:DIN 89160/98

MGG Marine Power Cable Electrical Characteristics

1.Rated Voltage Uo/U(Um):600/1000V
2.Test Voltage:3500V

Minimum Internal Bending Radius

1.For overall diameter of cables<25mm 4×cable diameter
2.For overall diameter of cables> 25mm 6×cable diameter

Technical specification:

MGG Marine Power Cable Usage Characteristics

Minimum installation temperature	–10°C
Minimum operating temperature	–35°C
Short-circuit max.conductor temperature	250 °C
Max.conductor temperature in service	85 °C
Flame Retardant	IEC 60332-3 Cat. A
Smoke Density	IEC 61034
Gases Corrosivity	IEC 60754-2
Gases Toxicity	No toxicity to IEC 60754-1
