HVG MARINE CABLE 0033MGCH-F fire resistant marine power cables

Applications

MGCH-F halogen free,fire resistant marine power cables with screen 0.6/1KV are used for cargo ships, Passenger vessels and Special-purpose vessels.

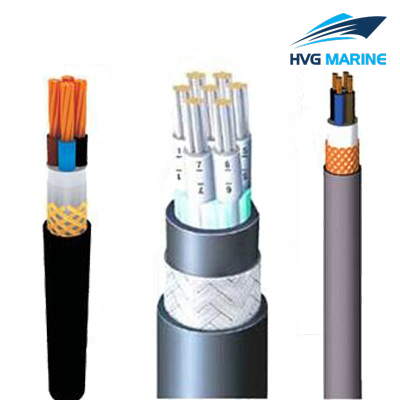

MGCH-F fire resistant marine power Cable Construction

1.Conductor : Annealed Stranded Bare Copper,Class 2
2.Insulation : Fire Barriers+HEPR(Cross-linked Ethylene Propylene Rubber)
3.Filler or Tape
4.Armour : Separator tape/bare copper braid
5.Sheath : Polyolefin

MGCH-F fire resistant marine power cables Standards

International:IEC 60092-353;IEC 60331; IEC 60332-3;IEC 60754-1; IEC 60754-2;IEC 61034
National: DIN 89158/98

Electrical Characteristics

Rated Voltage Uo/U(Um):600/1000V
Test Voltage:3500V

Minimum Internal Bending Radius

For all cables:6 × cable diameter

Technical specification:

Usage Characteristics

Minimum installation temperature	–10°C
Minimum operating temperature	–35°C
Short-circuit max.conductor temperature	250 °C
Max.conductor temperature in service	85 °C
Flame Retardant	IEC 60332-3 Cat. A
Fire Resistant	IEC 60331
Smoke Density	IEC 61034
Gases Corrosivity	IEC 60754-2
Gases Toxicity	No toxicity to IEC 60754-1
Electro magnetic interference resistance	Yes
