HVG MARINE CABLE 0032: MGCH Halogen Free Marine Power Cable
Applications
MGCH halogen free marine power cable with screen 0.6/1KV are used for cargo ships, Passenger vessels and Special-purpose vessels.Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles. Due to its’ overall screen, environmental electromagnetic interference is minimized.Usable at all conditions in marine environment such as dry, wet or oily locations.Due to its’ flame retardant feature, the part which directly contacts with fire will burn but the flame will not spread along the cable length. Thus it prevents the fire from spreading around.

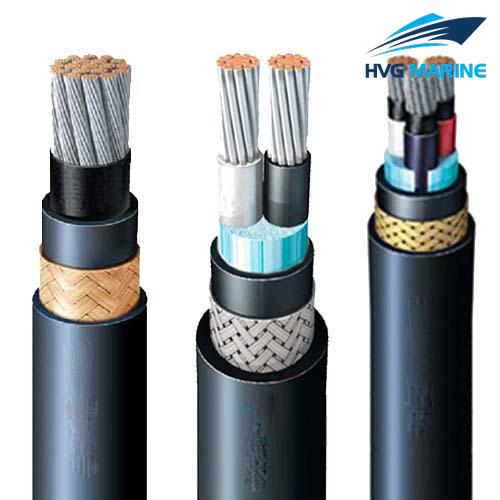

MGCH Halogen Free Marine Power Cable Construction
1.Conductor:Annealed Stranded Bare Copper,Class 2
2.Insulation : HEPR (Crosslinked Hard grade Ethylene Propylene)
3.Filler or Tape
4.Armour : Separator tape/bare copper braid
5.Sheath : Polyolefin
MGCH Halogen Free Marine Power Cable Standards
International: IEC 60092-353;IEC 60332-3; IEC 60754-1;IEC 60754-2; IEC 61034
National: DIN 89158
Electrical Characteristics
Rated Voltage Uo/U(Um):600/1000V
Test Voltage:3500V
Usage Characteristics
Minimum installation temperature:–10°C
Minimum operating temperature:–35 °C
Short-circuit max.conductor temperature:250 °C
Max.conductor temperature in service:85 °C
Flame Retardant:IEC 60332-3 Cat. A
Smoke Density:IEC 61034
Gases Corrosivity:IEC 60754-2
Gases Toxicity:No toxicity to IEC 60754-1
