HVG MARINE CABLE 0015: TIOI High Voltage Flame retardant Shipboard Power Cable

Application

This cable is halogen free cable,suitable for power, control and lighting system for ships or offshore-platforms. Due to its flexibility also suitable when the installation spacesuit and/or for places which are difficult to access Suitable for areas where protection against electromagnet interference (EMI) signals is important.

TIOI High Voltage Flame retardant Shipboard Power Cable Standards

– Design guide : IEC 60092-350 & IEC 60092-354
– Insulation material : IEC 60092-351, XLPE
– Sheath material : IEC 60092-359, SHF1
– Flame retardant : IEC 60332-1 & IEC 60332-3 Category A
– Halogen content : IEC 60754-1, 0.5%
– Smoke emission : IEC 61034, 60%
– Cold bend/impact : CSA 22.2 No. 0.3 (-40 °C / -35 °C )

Technical specification:

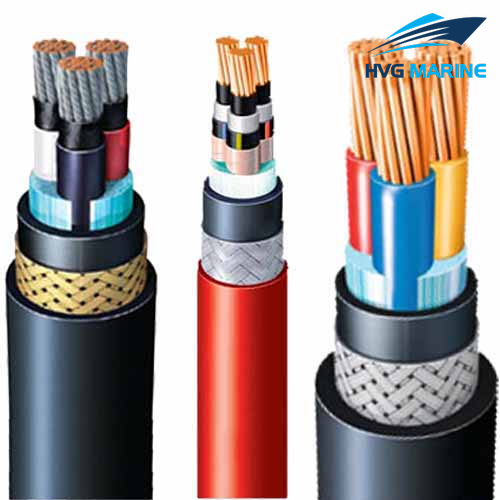

TIOI High Voltage Flame retardant Shipboard Power Cable Construction
TIOI High Voltage Flame retardant Shipboard power cable Additional information:

Classification	Code letter	Detail
Conductor		Plain,Annealed,stranded copper wire
Insulation	T	XLPE as per 60092-351
Inner Covering	I	Halogen free thermoplastic compound(IEC 60092-359 SHF1)
Armor	O	Copper wire braid, Coverage density : Min. 90%
Sheath	I	Halogen free thermoplastic compound(IEC 60092-359 SHF1) Sheath Color:Black

Minimum installation temperature	-20 °C
Maximum conductor temperature	+90 °C
Operating temperature	min. -40 °C, max. +80 °C
Outer sheath colour	black
Standard	IEC 60092-353
Approval	Approval by most important classification societies American Bureau of Shipping, Bureau Veritas, Det Norske Veritas, Lloyds Register and Germanischer Lloyd
Packaging	drums
