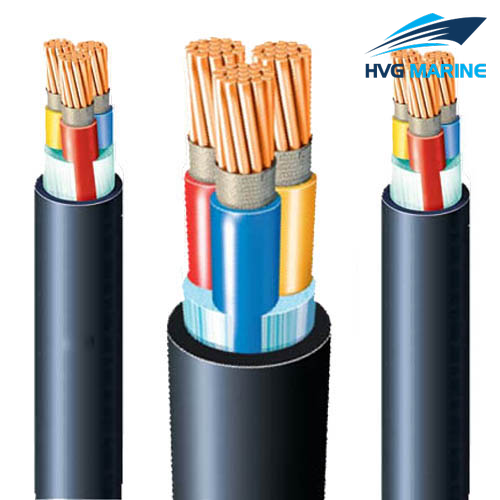

HVG MARINE CABLE 0011: SXXI Fire resistance Shipboard power and control cable
Application
SXXI Fire resistance power and control cable is suitable for marine applications where circuit integrity is important in the event of a fire, including ship wiring.Unarmored fire resistant cable for fixed installation in ships where cable protection is needed.Power,control,alarm,emergency and critical systems.This cable can be installed and operated both indoors and outdoors.
| Design Guide | IEC 60092-350, 353 |
| Insulation Material | IEC 60092-351 |
| Sheath Material | IEC 60092-359 |
| Flammability | IEC 60332-1 & IEC 60332-3 Category A |
| Fire Resistance | IEC 60331(750℃ or 1000℃) |
| Halogen Content | IEC 60754-1,2, 0.5%(Max.) |
| Smoke Emission | IEC 61034-1,2, 60%(Min.) |
| Classification | Code Letter | Construction Detail |
| Conductor | Plain, Annealed, Stranded copper wire | |
| Fire resisting layer | S | Mica/Glass Tape (MGT) |
| Insulation | Cross-linked Polyethylene (XLPE) as per IEC 60092-351 | |
| Inner Covering | X | Non |
| Armor | X | Non |
| Sheath | I | Halogen Free Thermoplastic compound (IEC 60092-359, SHF1)Sheath color Black |
