HVG MARINE CABLE 0014

HVG MARINE CABLE 0014: TICI High Voltage Flame retardant power cable

Application

This cable is halogen free cable,suitable for power, control and lighting system for ships or offshore-platforms. Due to its flexibility also suitable when the installation spacesuit and/or for places which are difficult to access This cable is Suitable for areas where protection against electromagnet interference (EMI) signals is important.

TICI High Voltage Flame retardant power cable Applied Standards

– Design guide : IEC 60092-350 & IEC 60092-354
– Insulation material : IEC 60092-351, XLPE
– Sheath material : IEC 60092-359, SHF1
– Flame retardant : IEC 60332-1 & IEC 60332-3 Category A
– Halogen content : IEC 60754-1, 0.5%
– Smoke emission : IEC 61034, 60%
– Cold bend/impact : CSA 22.2 No. 0.3 (-40 °C / -35 °C )
– Max. rated conductor temperature : 90 °

Technical specification:

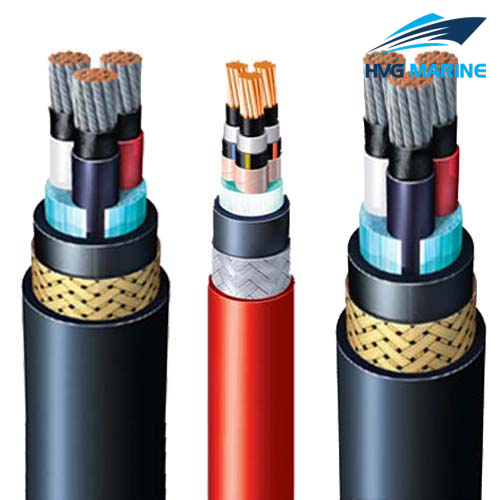

TICI High Voltage Flame retardant power cable construction
TICI High Voltage Flame retardant power cable technical data:

Classification	Code letter	Detail
Conductor		Plain,Annealed,stranded copper wire
Insulation	T	XLPE as per 60092-351
Inner Covering	I	Halogen free thermoplastic compound(IEC 60092-359 SHF1)
Armor	C	Galvanized Copper wire braid,Coverage density : Min. 90%
Sheath	I	Halogen free thermoplastic compound(IEC 60092-359 SHF1) Sheath Color:Black

Minimum installation temperature	-20 °C
Maximum conductor temperature	+90 °C
Operating temperature	min. -40 °C, max. +80 °C
Outer sheath colour	black
Standard	IEC 60092-353
Approval	Approval by most important classification societies American Bureau of Shipping, Bureau Veritas, Det Norske Veritas, Lloyds Register and Germanischer Lloyd
Packaging	drums
