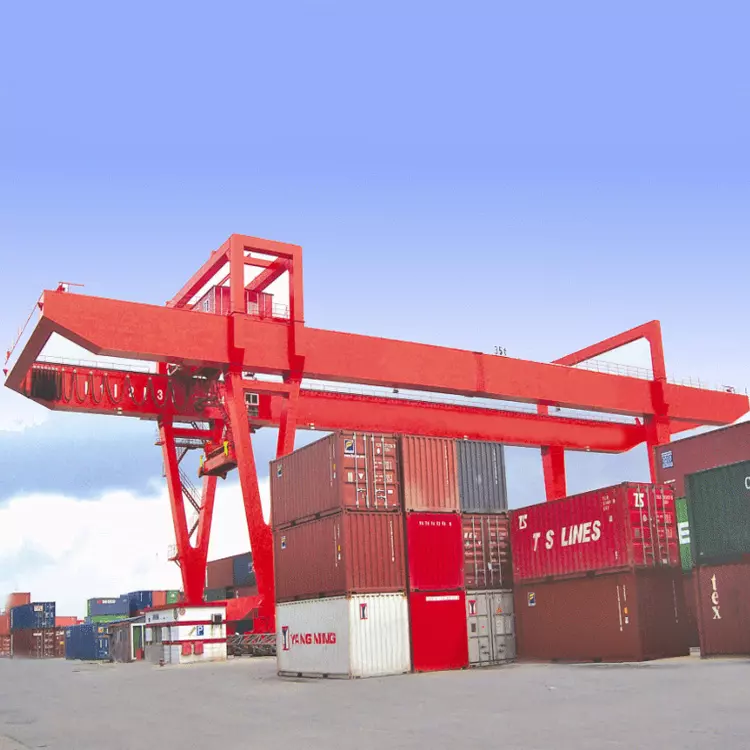

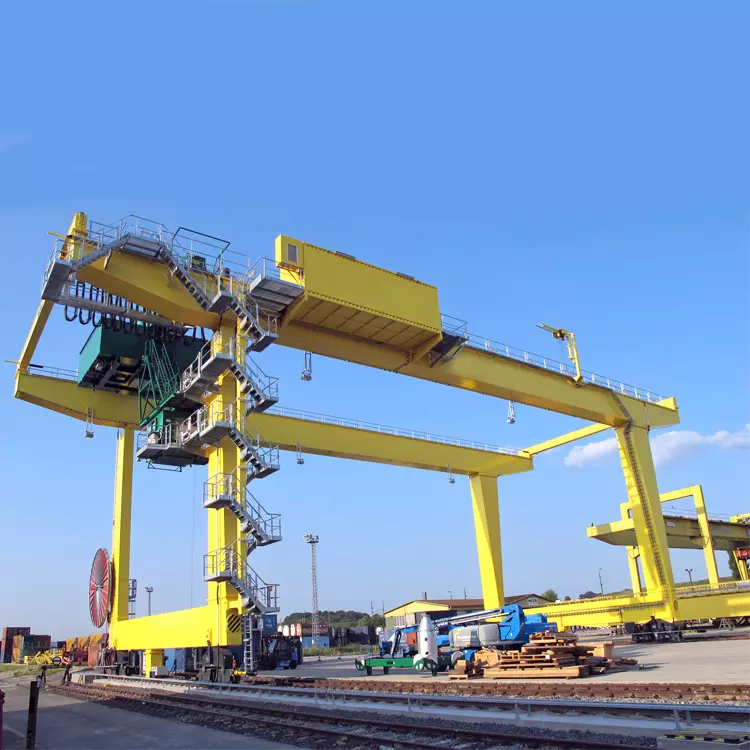

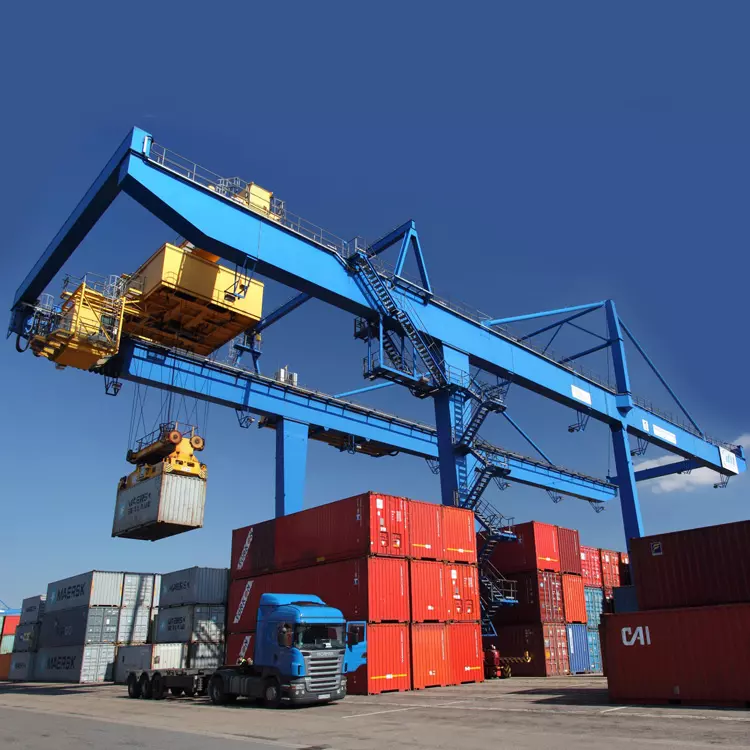

The metal construction of cantilever rail mounted gantry cranes are like a metal door structure, which can walk directly on the ground track, and the end beam of rmg crane can have cantilever beam
- Cantilever length: 0-15m
- Trolley running speed: 20-40M/MIN
- Crane running speed: 30-50M/MIN
- Working duty: A5-A7
- Lifting speed: 5-15M/MIN
- Control method: cabin control/wire rope remote control
- Protection grade: IP54
- Insulation grade: F
- Power supply: 3 phase 380V 50hz or request
- Colour: request
Features and Advantage s:
1. High efficiency, make full use of yard, high automatic;
2. Few fault, lower energy consumption, low cost;
3. Wide span, can step astride 14 or more containers;
4.Make full use of yard, so that it can store more containers;
5.Simple structure, easy maintenance, reliable operating;
6. Electric drive, save energy;
7.Crane travels along the rail, not flexible, working range is limited;
8. Applied to stacking area and greater throughput of container port.
Saf e ty Device:
1. Automatic rectify deviation control ; Weight overload protection device
2. Top quality polyurethane buffer ; Phase protection
3. Lifting limit switch , Cross traveling limit switch
4. Long traveling limit switch ; Voltage lower protection function
5. Emergency stop system ; Current overload protection system
6. Lighting system ; Light and alarm system
