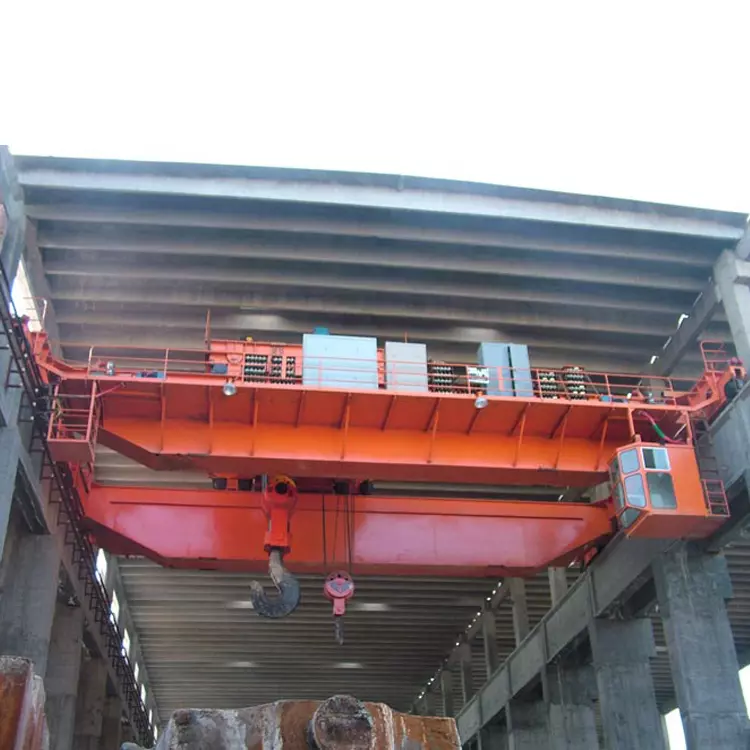

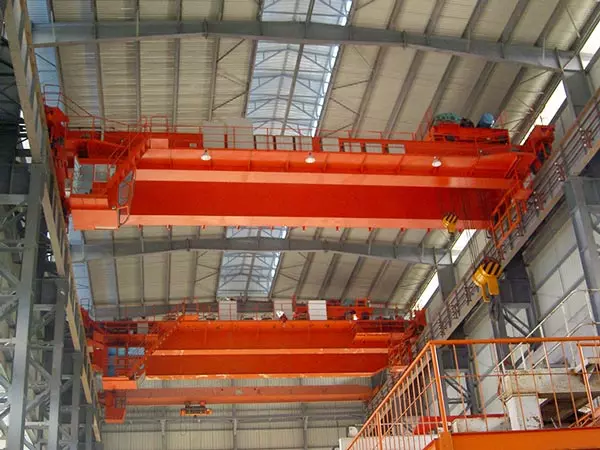

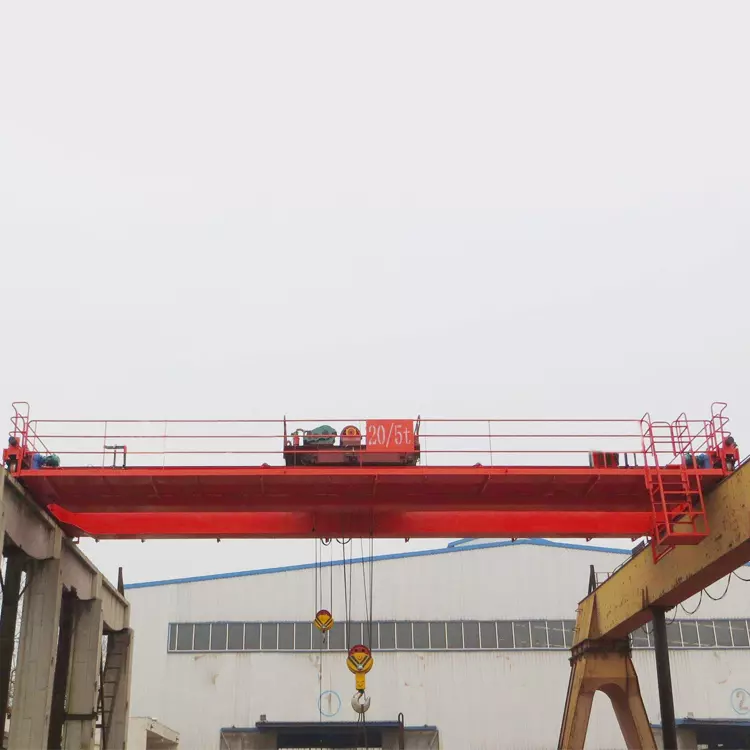

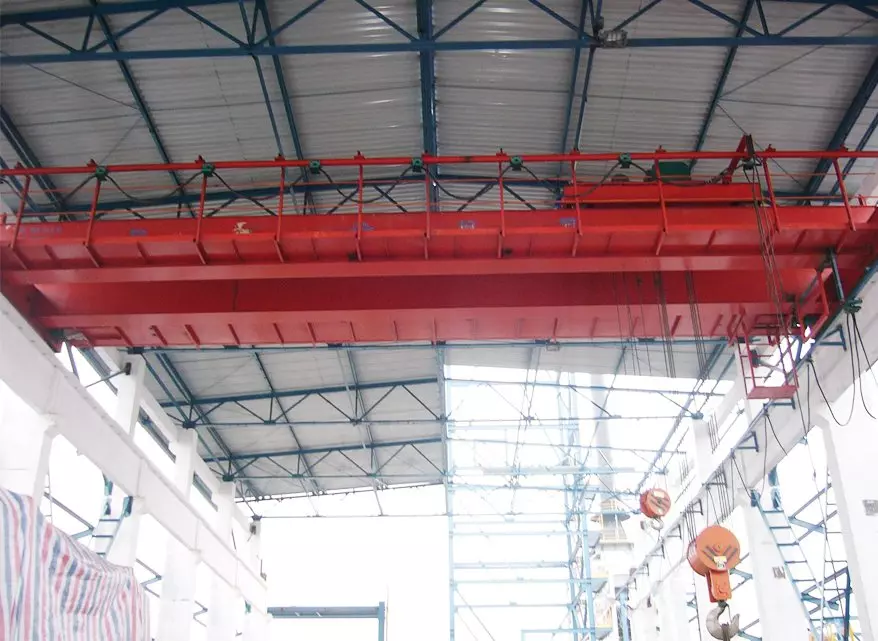

Anti-explosion overhead crane systems for lifting things is applicable to the workshops where the Explosion-conduction is lower than II B or II C,burning point is higher than T4,and is applicable to section 1 or 2(or more details,check GB3836-2000).

• Lifting speed: 5-15M/MIN
• Trolley running speed: 20-40M/MIN
• Crane running speed: 50-100M/MIN
• Working duty: A5-A7
• Control method: cabin control/wire rope remote control
• Protection grade: IP54
• Insulation grade: F
• Colour: request
• Power supply: 3 phase 380V 50hz or request

Features and Advantages:

a: High Working Performance
b: Easy Operation
c: Safe and Reliable
d: Light Dead Weight
e: Small Occupied Space
f: Low Operation and Maintenance Costs

Safety Device

a: Weight overload protection
b: Top quality long time bearing polyurethane materials buffer
c: Crane traveling limit switch
d: Cross traveling limit switch
e: Lifting limit switch
f: Voltage lower protection function
g: Emergency stop system
h: Current overload protection system
