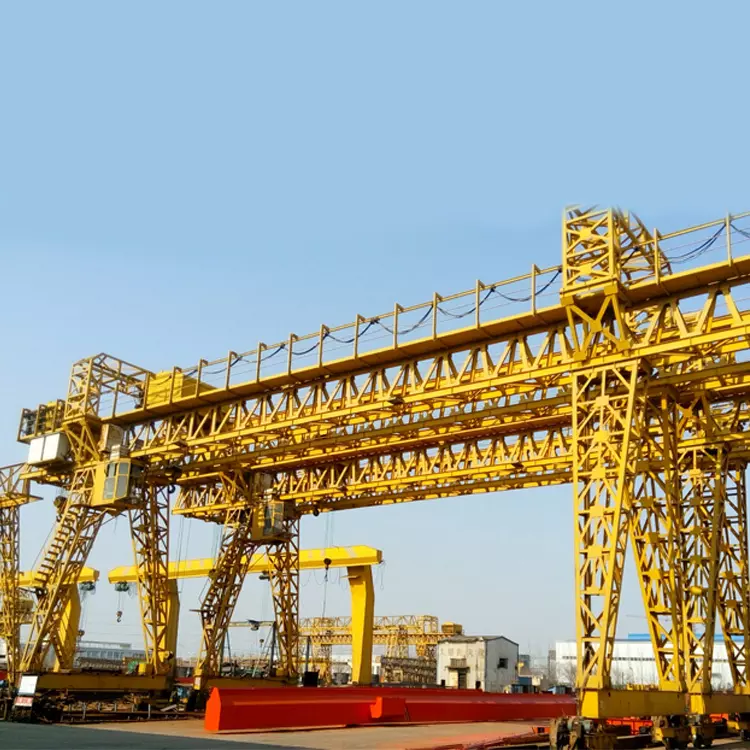

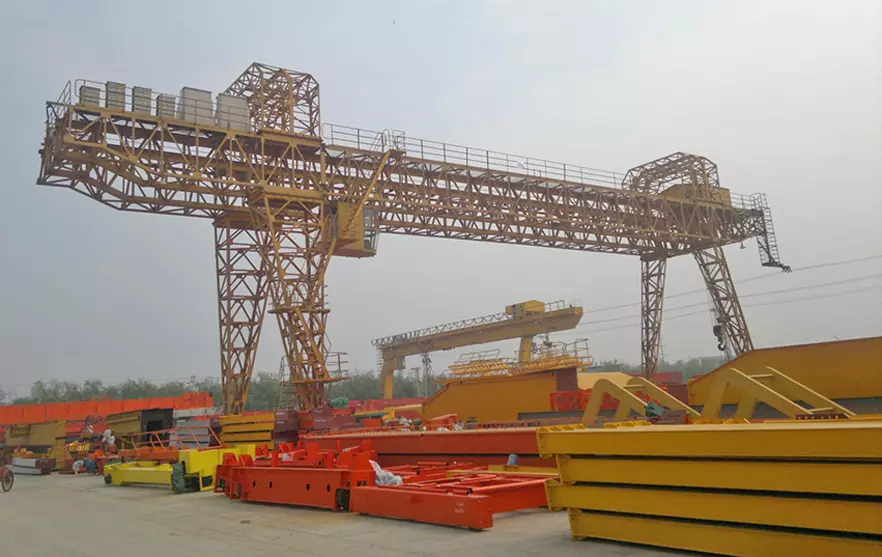

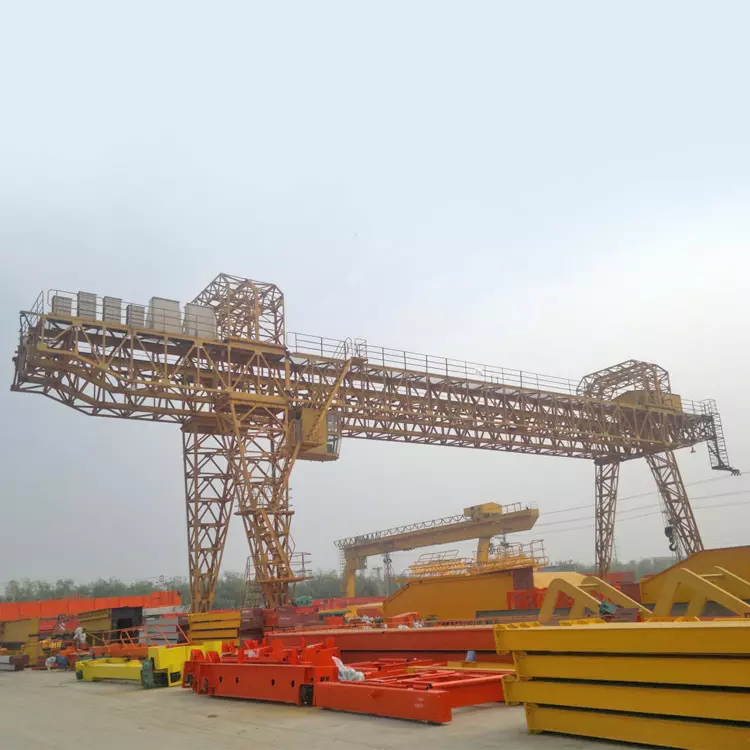

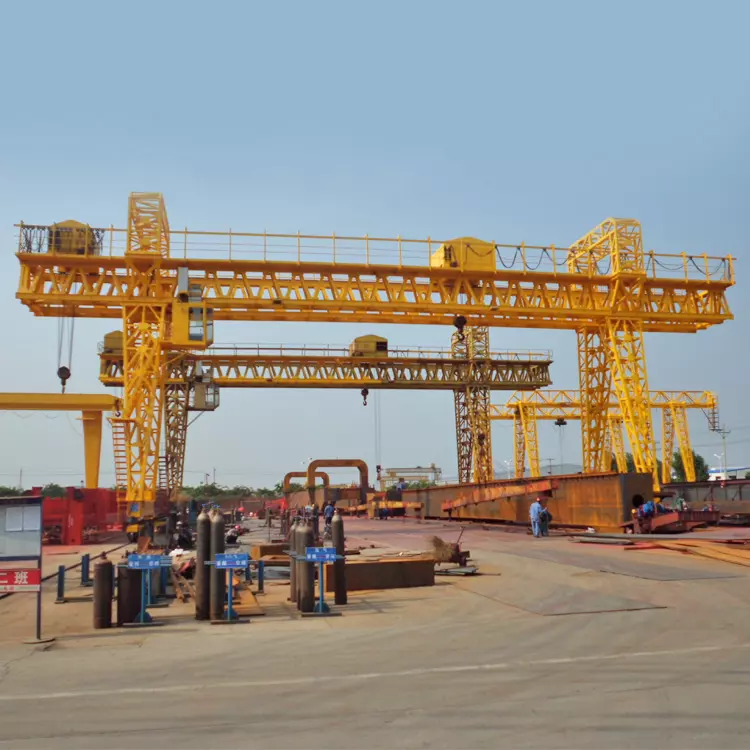

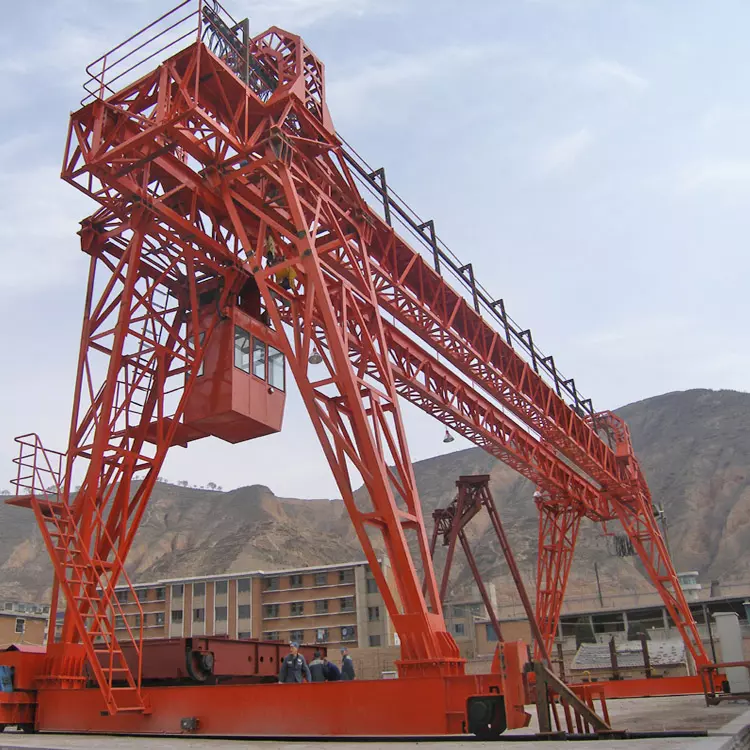

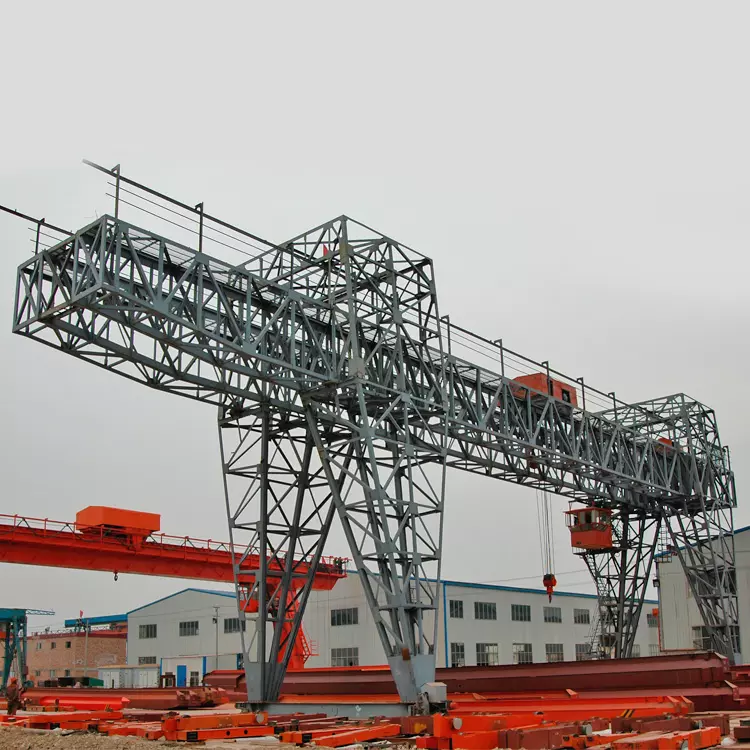

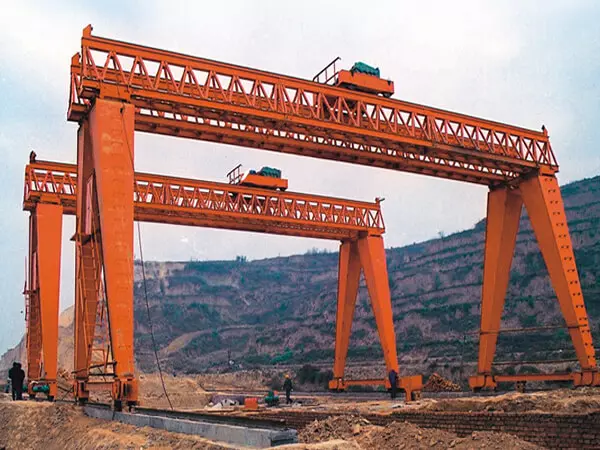

Truss type double girder gantry crane.
- Cantilever length: 0-15m
- Lifting speed: 5-15M/MIN
- Trolley running speed: 20-40M/MIN
- Crane running speed: 30-50M/MIN
- Working duty: A5-A7
- Control method: cabin control/wire rope remote control
- Protection grade: IP54
- Insulation grade: F
- Power supply: 3 phase 380V 50hz or request
- Colour: request
Specification:
- 1.Lifting capacity up to 900on
- 2.Span is 20m to 100m
- 3.Lifting height up to 100m
- 4.Working class: ISOA5-A7/FEM2M-4M
- 5.crane traveling mechanisms are operated in the driver cabin or remote control

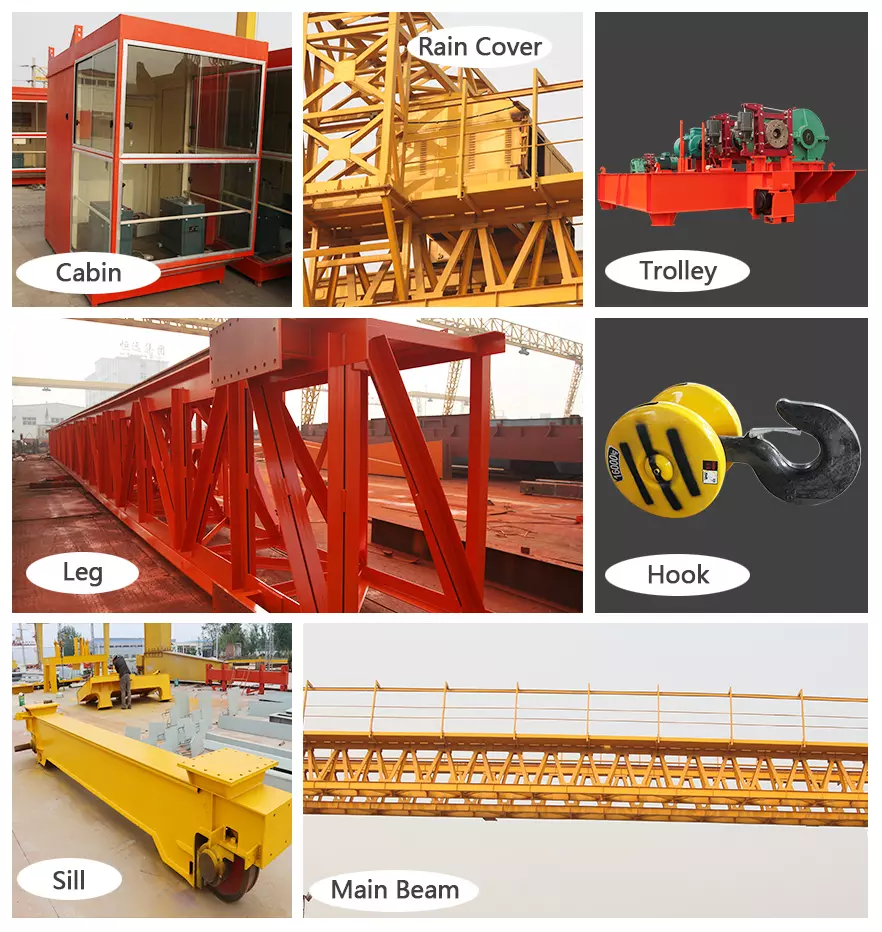

Mechanical:
- 1.Double box beam with steel legs moving through the ground beam as crane travelling system
- 2.The camber of main beam will be designed as Span*1-1.4/1000.
- 3.Steel Material: Q235 or Q345
- 4.Shot-blasting Sa2.5 for main girder and supporting beam
- 5.Epoxy zinc rich high quality painting.
- 6.Electrification and outfitting
- 7.Brand: CHINT SIEMENS Schneider
- 8.Conductor power supply: Cable Reel or busbar.
- 9.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications
- 10.Whole layout provides good protection against special working environment. Such as gas workshop
