HVG STEEL SHEET PILE 0030

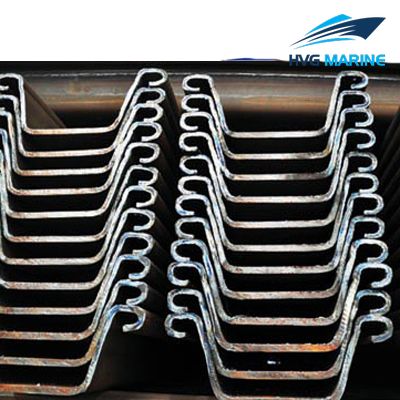

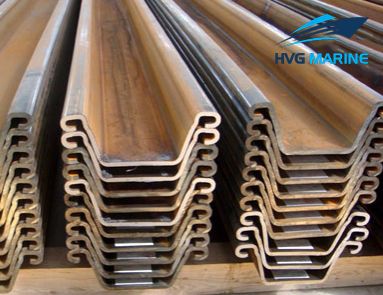

HVG STEEL SHEET PILE 0030: U Type Cold Formed Sheet Pile

This kind of steel sheet pile is formed by cold bending equipment with continuous rolling. The side lock of it can be connected together to form a steel structure sheet pile wall. Cold formed steel sheet pile adopts thin steel. The production of it is lower and the price is cheaper.

Product Details:

1. It is designed and produced according to European standard
2. The structure of it is symmetrical, which make it can be used repeatedly
3. Special specification can be made according to customers requirements.
4. The design and production cycle is short, the performance of it can be customized.
5. Good corrosion resistance performance.

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification:

Model	Width	Height	Thickness	Sectional Area	Weight
Model	W(mm)	H(mm)	T(mm)	cm²/m	kg/m
HSU5-1	600	150	9.5	119.75	56.4
HSU5-2	600	150	10	141.6	66.7
HSU6-1	600	280	6	89.6	42.2
HSU7-1	600	300	6	93.42	44
HSU7-2	600	340	6	98.09	46.2
HSU7-3	600	380	6	99.58	46.9
HSU8-1	600	340	6.5	103.34	48.7
HSU8-2	600	325	7	109.98	51.8
HSU8-3	600	355	7	113	53.4
HSU8-4	750	320	6	87.1	51.3
