HVG STEEL SHEET PILE 0026: European Standard Z Shape Sheet Pile

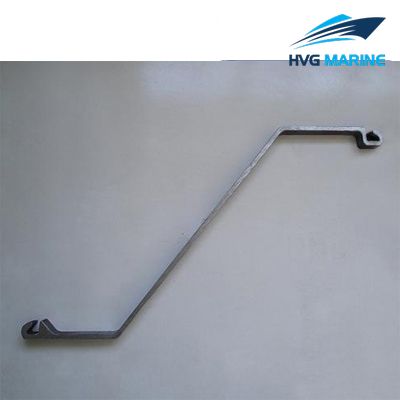

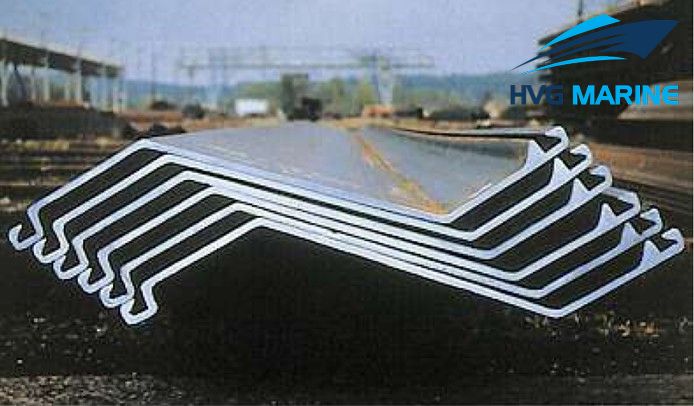

European standard Z shape pile has advantages of safe and reliable structure, efficient waterproof performance and environment protection. It is extensively used for permanent structures, temporary earth retaining works and cofferdams, etc. Besides its rigid structure, its moment of inertia is relatively large, thus allowing repetitive use.

Product Details:

1. Width: 580-700mm
2. Height: 314-501mm
3. Thickness: 8.5-17mm
4. Extremely competitive section modulus
5. High tensile strength
6. Large width make installation convenient

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification：

Type	Width	Height	Thickness(mm)		Theoretical Weight		Inertia Moment Ix
Type	mm	mm	t	s	Single Pile (kg/m)	Wall(kg/m)	cm⁴
Z48	580	481	19.1	15.1	140.2	242.2	115921
Z12	700	314	8.5	8.5	67.7	97.6	18880
Z13	700	315	9.5	9.5	74	105.7	20540
Z14	700	316	10.5	10.5	80.3	114.7	22190
Z17	700	420	8.5	8.5	73.1	104.4	36230
Z18	700	418	9.1	9.1	76.9	110.2	37726
Z19	700	421	9.5	9.5	80	114.3	39380
Z20	700	421	10	10	83.5	119.3	40960
Z24	700	459	11.2	11.2	95.7	136.7	55820
Z26	700	459	12.3	12.3	103.3	147.7	59759
Z28	700	461	13.2	13.2	110	157.2	63620
Z36	700	499	15	11.2	118.6	169.5	89610
Z38	700	500	16	12.2	126.4	180.6	94840
Z40	700	501	17	13.2	134.2	191.7	100080
