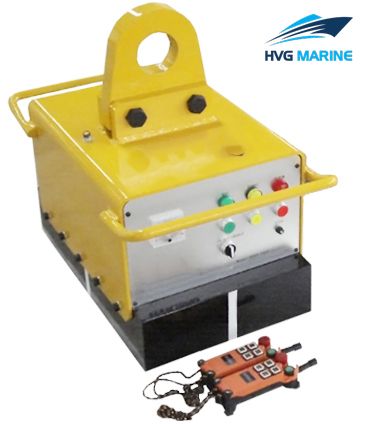

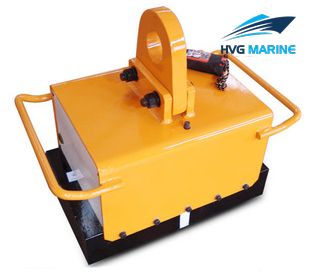

HVG RIGGING-LIFTING 0157: Battery Electric Permanent Magnetic Lifter

Battery electric permanent magnetic lifter can be used in many areas, such as handling billets, bundles, bar stock, slabs, steel plate and more. It has advantages of versatile, compact, easy to operate and widely used. Due to using the most advanced European electric control permanent magnet technology, the magnetic system is safety and the magnetic force is constant.

Product Details:

1. Item: Battery electric permanent magnetic lifter
2. Type: Permanent
3. Power source: Magnetic force
4. Capacity: 500kg-6000kg
5. Braking load is 4 times of working load limited
6. Usage: Lifting
7. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects
3. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.
4 .Carefully check each part, the damaged parts should be replaced timely .
5. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

Sketch of the battery electric permanent magnetic lifter

Technical specification:

Specification:

Rated capacity(kg)	Weight(kg)	Working voltage(V)	Recharge time(h)
500	50	DC24	5-7
1000	75	DC24	5-7
1500	120	DC24	6-8
2000	145	DC24	6-8
3000	195	DC48	7-9
5000	350	DC48	7-9
6000	430	DC48	7-9
