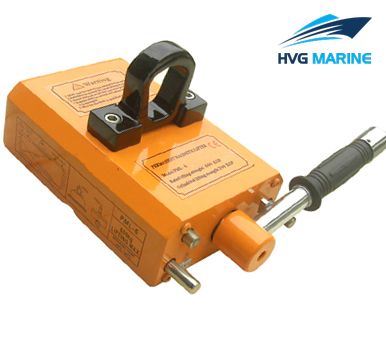

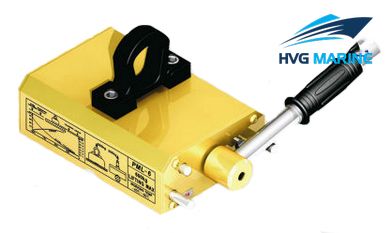

HVG RIGGING-LIFTING 0156: Permanent Double Magnetic Circuit Lifter

Permanent double magnetic circuit lifter has strong magnetic force by permanent magnetic material. It mainly used for hoisting and handling the flat ferrous steel plate or cylindrical ferrous steel. The lifter has the features of strong attraction, small volume, light weight, powerful lifting effort, easy and safe to operate, long-period effort and no power supply.

Product Details:

1. Item: Permanent double magnetic circuit lifter
2. Type: Permanent
3. Power source: Magnetic forec
4. Operation: Handle
5. Capacity: 100kg-6000kg
6. Braking load is 4 times of working load limited
7. Usage: Lifting
8. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects
2. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.
3 .Carefully check each part, the damaged parts should be replaced timely .
4. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

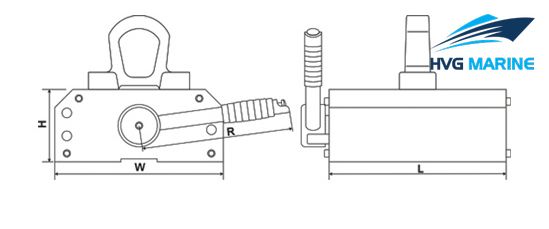

Sketch of the permanent double magnetic circuit lifter

Technical specification:

Specification:

Rated capacity(kg)	Weight(kg)	L(mm)	W(mm)	H(mm)	R(mm)
100	3	92	64	70	145
200	5	114	72	98	145
300	10	165	88	96	176
500	12.5	210	88	96	203
600	20	216	118	118	219
1000	37	264	148	138	266
1500	62	308	168	168	285
2000	80	397	168	168	380
3000	160	443	226	216	512
5000	320	589	290	265	627
6000	398	713	290	265	707
