HVG RIGGING-LIFTING 0151

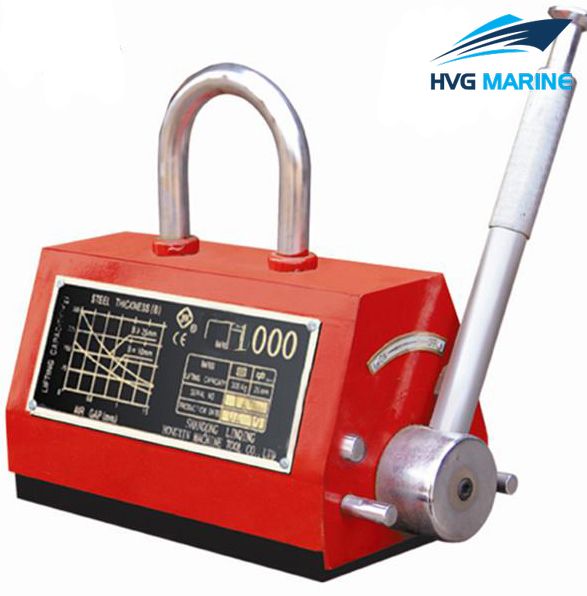

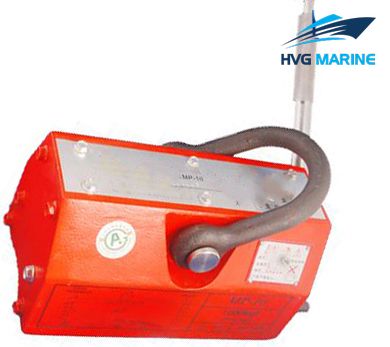

HVG RIGGING-LIFTING 0151: Permanent Magnetic Lifter for Steel Plate

Permanent magnetic lifter for steel plate uses permanent magnetic material. And because the magnetic force will not failure, so the lifting force it can provide greatly strengthened. Its rated lifting force fully strengthened nearly 3.5 times, so the safety coefficient is more reliable in the process of practical application. Through the V groove design, it can make the hoisting scope become more extensive, which greatly enhanced the value of its application.

Product Details:

1. Item: Permanent magnetic lifter for steel plate
2. Type: Permanent
3. Power source: Magnet
4. Capacity: 100kg-5000kg
5. Braking load is 4 times of working load limited
6. Usage: Lifting
7. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects
2. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.
3 .Carefully check each part, the damaged parts should be replaced timely .
4. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

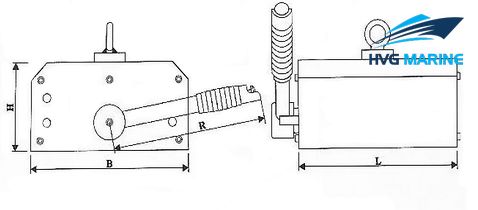

Sketch of the permanent magnetic lifter for steel plate

Technical specification:

Specification:

Capacity(kg)	B.L(kg)	Weight(kg)	L(mm)	B(mm)	H(mm)	R(mm)
100	300	3	90	63.5	68	145
400	1200	10	160	95	80	210
600	1800	20	220	115	125	230
1000	3000	37	260	145	150	280
1500	3750	48	310	145	150	280
2000	5000	68	340	160	165	410
3000	7500	87	420	185	185	510
4000	10500	116	480	200	200	510
5000	15000	198	580	300	300	650
