HVG RIGGING-LIFTING 0152: Automatic Magnetic Lifter for large Steel Plate

Automatic magnetic lifter for large steel plate is used for handing large, irregular, heavy-forging steel plate and casting blank. It uses crane’s hook to rise and drop ratchet to rotate and transformed the magnetic circuit automatically, finally finish the attracting and discharging of material. It has features of safe, reliable, using no power, no persion operation and long service life.

Product Details:

• 1. Item: Automatic magnetic lifter for large steel plate
• 2. Type: Permanent
• 3. Power source: Magnet
• 4. Capacity: 1000kg-5000kg
• 5. Braking load is 4 times of working load limited
• 6. Usage: Lifting
• 7. Special specifications and marks can be made according to customers requirement

Safety Notice:

• 1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects
• 2. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.
• 3. Carefully check each part, the damaged parts should be replaced timely .
• 4. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

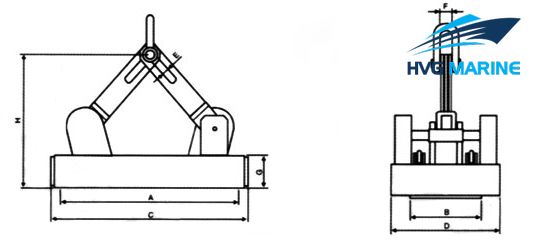

sketch of the automatic magnetic lifter for large steel plate
