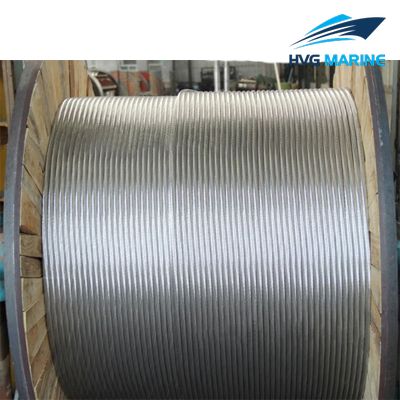

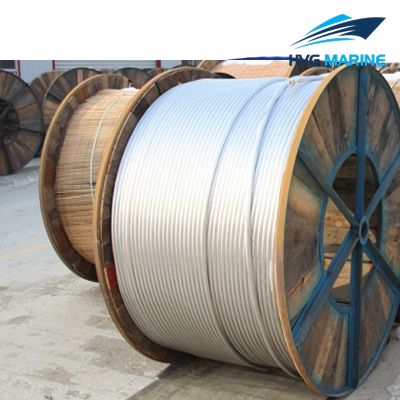

HVG RIGGING-LIFTING 0143: Galvanized Guy Rope for Electric Cable

Galvanized guy rope for electric cable is made from high quality carbon steel, and it can achieve high strength after repeated cold and heat treatment. On the workplace with damp or outdoor environment, the galvanized steel wire rope should be choose to enhance rust resistance.

Product Details:

1. Item: Galvanized guy rope for electric cable

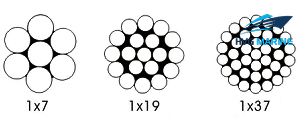

2. Construction: 1*7, 1*19, 1*37
3. Type: steel wire rope
4. Finish: Galvanized
5. Material: Carbon steel
6. Tensile strength: 1370, 1470, 1570 Mpa.
7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed
2. Never overload, and never shock load a wire rope
3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts
4. It is important to clean and replace lubricant to the wire rope periodically.

Technical specification:

Specification:

Construction	Wire Diameter(mm)	Tensile Strength of Rope(Mpa)			Weight of Zinc Coat(g/㎡)	Approx.Weight(kg/100m)
		1370	1470	1570
		Mininum Breaking Load(KN)
1×7	1	7.54	8.09	8.64	185	4.33
	1.2	10.9	11.6	12.4	185	6.23
	1.4	14.8	15.9	17	185	8.48
	1.6	19.3	20.7	22.1	200	11.1
	1.8	24.4	26.2	27.9	215	14
	2	30.1	32.3	34.5	230	17.3
	2.3	39.9	42.8	45.7	230	22.9
	2.6	51	54.7	58.4	230	29.3
	2.9	63.3	67.9	72.5	230	36.4
	3	67.8	72.8	77.7	230	39
	3.5	92.2	98.9	106	245	53
	3.8	109	117	125	260	62.5
	4	121	129	138	260	69.3
1×19	1.6	52.3	56.2	60	200	30.2
	1.8	66.2	71	75.8	215	38.2
	2	81.8	87.8	93.7	230	47.2
	2.3	108	116	124	230	62.4
	2.6	138	148	159	230	79.8
	2.9	171	184	196	230	99.2
	3	184	197	210	230	106
	3.5	251	269	287	245	145
	3.8	295	316	338	260	170
	4	327	351	375	260	189
1×37	1.6	102	109	117	200	59
	1.8	129	138	148	215	74.6
	2	159	171	182	230	92.1
	2.3	211	226	242	230	122
	2.6	269	288	308	230	156
	2.9	334	259	383	230	194
	3	359	385	411	230	207
	3.5	488	523	559	245	282
	3.8	575	617	659	260	333
	4	637	684	730	260	368
	4.2	703	754	805	260	406
	4.4	771	828	884	260	446
