HVG RIGGING-LIFTING 0142: Compacted Steel Wire Rope

Compacted steel wire rope is mainly used for erect well, mine hoisting, oil drilling, ships, offshore installations, aerial tramway and the transport and lifting of equipment. The production technique difficulty lies in higher quality demands for steel wire and fibre core, more strict control damand for reasonable gap for consisting rope strands.

Product Details:

1. Item:Compacted steel wire rope

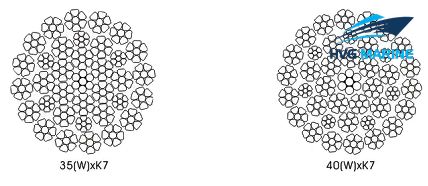

2. Construction: 35W*K7, 40W*K7
3. Type: steel wire rope
4. Tensile Strength: 1570, 1670, 1770, 1870, 1960 Mpa.
5. Finish: Galvanized
6. Material: Steel
7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed
2. Never overload, and never shock load a wire rope
3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts
4. It is important to clean and replace lubricant to the wire rope periodically.

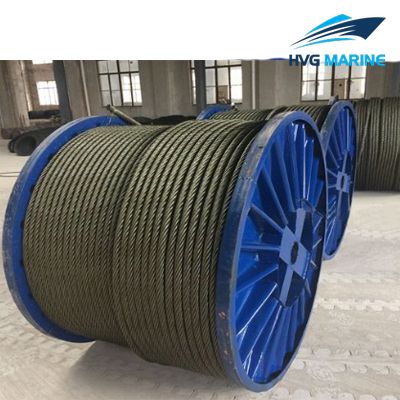

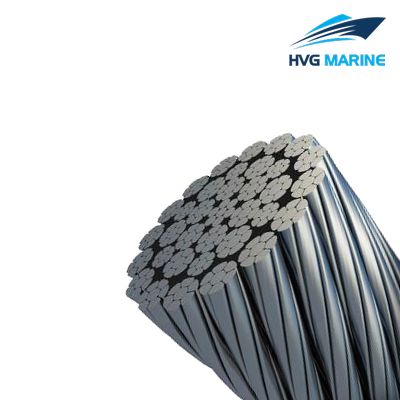

Compacted Steel Wire Rope

Technical specification:

Specification:

Nominal Diameter(mm)	Tensile Strength of Rope(Mpa)					Approx.Weight(kg/100m)
	1570	1670	1770	1870	1960
	Mininum Breaking Load(KN)
14	126	134	142	150	158	100
16	165	175	186	196	206	131
18	209	222	235	248	260	165
20	257	274	290	307	320	204
22	312	331	351	371	389	247
24	371	394	418	442	463	294
26	435	463	491	518	543	345
28	505	537	569	601	630	400
30	579	616	653	690	720	459
32	659	701	740	790	820	522
34	740	790	840	890	930	590
36	830	890	940	990	1040	661
38	930	990	1050	1110	1160	736
40	1030	1100	1160	1230	1290	816
42	1140	1210	1280	1350	1420	900
44	1250	1330	1400	1480	1560	987
46	1360	1450	1540	1620	1700	1080
48	1480	1580	1670	1770	1850	1180
50	1610	1710	1810	1920	2010	1280
52	1740	1850	1960	2070	2170	1380
54	1880	2000	2120	2240	2340	1490
56	2020	2150	2280	2400	2520	1600
58	2170	2300	2440	2580	2700	1720
60	2320	2460	2610	2760	2890	1840
