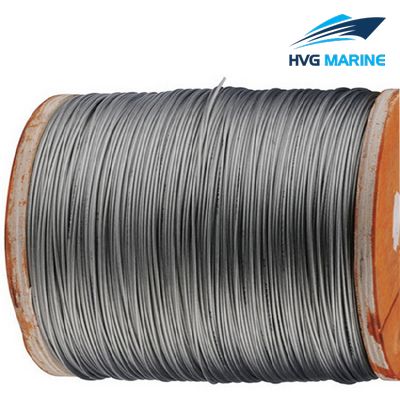

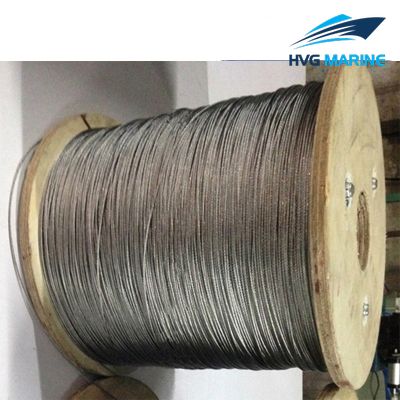

HVG RIGGING-LIFTING 0120: 1×19 Round Strand Wire Rope

Introduction:

We are mainly focus on producing wire rope with large diameter, super length, high tension and special construction. Diameter ranges from 0.18mm to 260mm in a variety of ropes of point contact, line contact and surface contact. The tensile strength can reach Grade 2160 or EEIPS.

There are all kinds of wire drawings, twisting equipmets and morden assembly line can enable pre-tension, heat treatment hot-dip galvanizing for ropes in different diameters. We can produce various of steel wire rope according to our national standards such as GB8919, GB/T20118, GB/T20067 and also international standards ISO, ASTM, EN, JIS and API etc. Got API, DNV, LR, BV, CCS, MA and KA certification,which assure good quality control.

Rope type:Slngle strand wire rope
Rope Construction：1×19

Technical specification:

1X19 Round Strand Wire Rope

Rope Diameter (mm)	Approx Weight (kg/100m)	Tensile Strength (Mpa)
		1570	1670	1770	1870
		Minimum Breaking Strength (kN)
3	4.56	7.49	7.97	8.44	8.92
3.5	6.21	10.2	10.8	11.5	12.1
4	8.11	13.3	14.2	15	15.9
4.5	10.3	16.9	17.9	19	20.1
5	12.7	20.8	22.1	23.5	24.8
5.5	15.3	25.2	26.8	28.4	30
6	18.3	30	31.9	33.8	35.7
6.5	21.4	35.2	37.4	39.6	41.9
7	24.8	40.8	43.4	46	48.6
7.5	28.5	46.8	49.8	52.8	55.7
8	32.4	56.6	56.6	60	63.4
8.5	36.6	60.1	63.9	67.8	71.6
9	41.1	67.4	71.7	76	80.3
10	50.7	83.2	88.6	93.8	99.1
11	61.3	101	107	114	120
12	73	120	127	135	143
13	85.7	141	150	159	167
14	99.4	163	173	184	194
15	114	187	199	211	223
16	130	213	227	240	254
