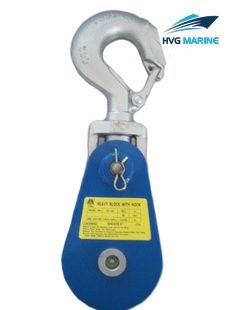

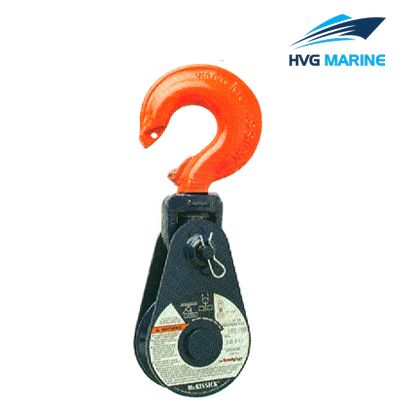

    HVG RIGGING-LIFTING 0116: Light Type Snatch Block with Hook

    Light type snatch block with hook is made by high quality carbon steel with galvanized on the surface. It has the advantages of small volume, light weight and high strength. It is a kind of important hoisting tool, which has simple structure and is easy to use.

    Product Details:

    • 1. Item: Light type snatch block with hook
    • 2. Type: European type
    • 3. Material: carbon steel
    • 4. Technology: Drop forged
    • 5. Surface: Painted or galvanized
    • 6. WLL: 2T-15T
    • 7. Braking load is 4 times of working load limited
    • 8. Usage: Lifting
    • 9. Size: 3”-18”
    • 10. Special specifications and marks can be made according to customers requirement

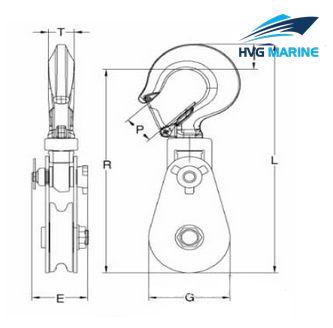

    Technical specification:

    • Specification:
    Sheave Dia.(in) WLL(T) Rope Dia.(in) Weight(lbs)

    3

    2

    3/8

    4.97

    4 1/2

    4

    1/2

    12.67

    6

    8

    3/4

    26.4

    8

    8

    3/4

    34.76

    10

    8

    3/4

    41.8

    12

    8

    3/4

    48.4

    14

    8

    3/4

    55

    16

    15

    7/8

    129.8

    18

    15

    1

    151.8
