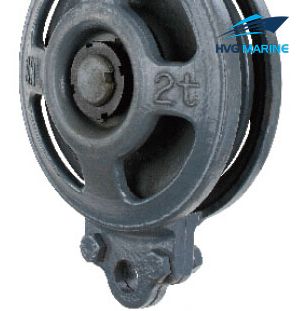

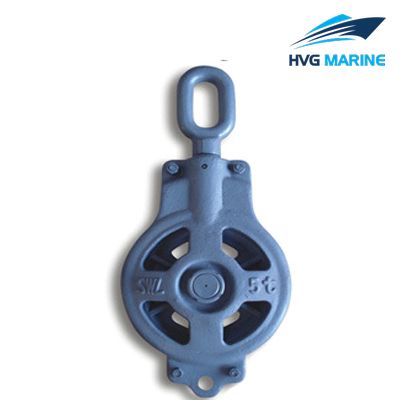

HVG RIGGING-LIFTING 0114: Marine Wire Rope Pulley Block

Marine wire rope pulley block is a kind of important lifting tool used in ship. To meet the increasing demands of clients, we have manufacture a variety of pulley block. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted.

Product Details:

1. Item: Marine wire rope pulley block
2. Material: carbon steel
3. Technology: Drop forged
4. Surface: Galvanized or zinc plated
5. WLL: 5T-30T
6. Braking load is 4 times of working load limited
7. Usage: Lifting
8. Size: 50-196mm
9. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

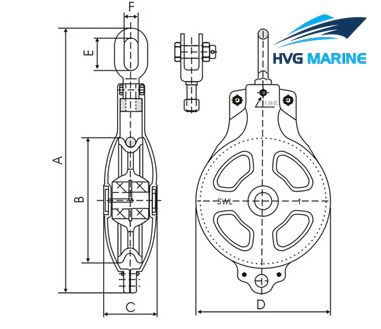

Dia.of wire rope(mm)	WLL(T)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
20/24	5	800	355	156	190	92	50
24/26	10	950	410	185	400	148	63
26/28	16	1050	460	200	500	155	75
26/28	20	1100	460	215	500	160	80
26/28	25	1125	460	310	500	160	160
26/28	30	1175	460	330	500	196	196
