HVG RIGGING-LIFTING 0113

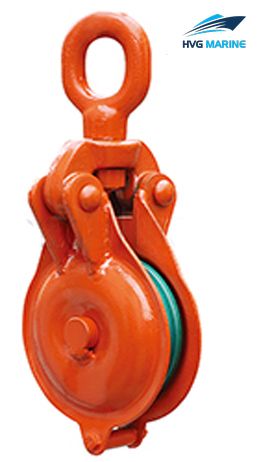

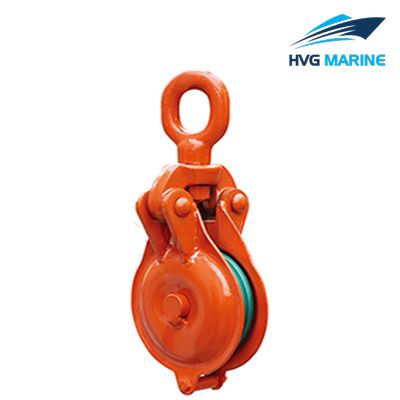

HVG RIGGING-LIFTING 0113: Single Sheave Marine Snatch Block

Single sheave marine snatch block is used in a variety of ways to lift loads, apply forces and to transmit power. It has the advantages of small volume, light weight and high strength. It can be widely used in mine, large factory, shipping, metallurgy, bridge construction and so on.

Product Details:

1. Item: Single sheave marine snatch block
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 0.5T-5T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 12mm-28mm
10. Special specifications and marks can be made according to customers requirement

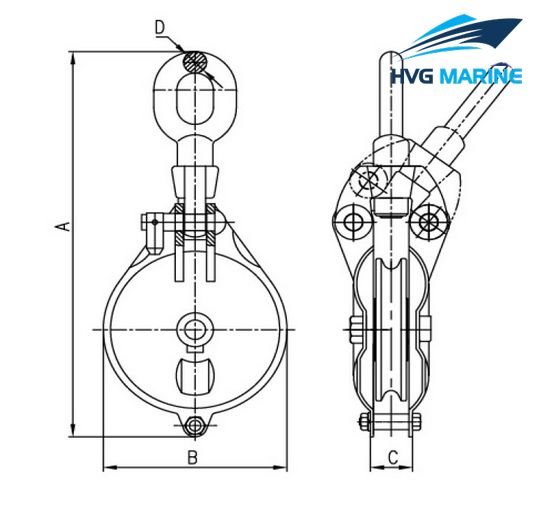

Technical specification:

Specification:

Wire Rope Dia.(mm)	Sheave Dia.(mm)	S.W.L(T)	N.W.(mm)	A(mm)	B(mm)	C(mm)	D(mm)
8	75	0.5	1.5	230	85	26	12
8	100	1	2.4	285	121	34	16
9	125	1.5	4.2	346	145	38	18
12	150	2	6.4	419	180	41	22
16	200	4	12.5	517	225	46	28
22	250	5	16	655	275	60	28
