HVG RIGGING-LIFTING 0115

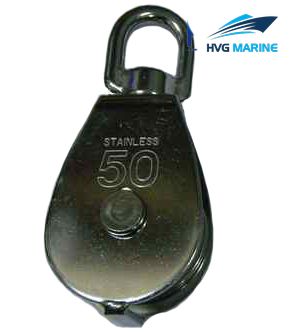

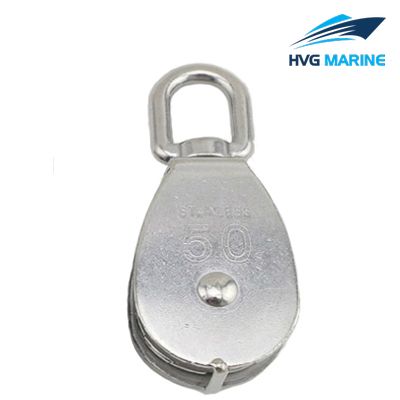

HVG RIGGING-LIFTING 0115: 304 Stainless Steel Pulley Block

304 stainless steel pulley block is made by high polished stainless steel. Every procedure of it are controlled strictly to make sure the quality of swivels before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.

Product Details:

1. Item: 304 stainless steel pulley block
2. Material: stainless steel
3. Technology: Drop forged
4. Surface: Polished
5. WLL: 35kg-1500kg
6. Usage: Lifting
7. Size: 15mm-100mm
8. Special specifications and marks can be made according to customers requirement

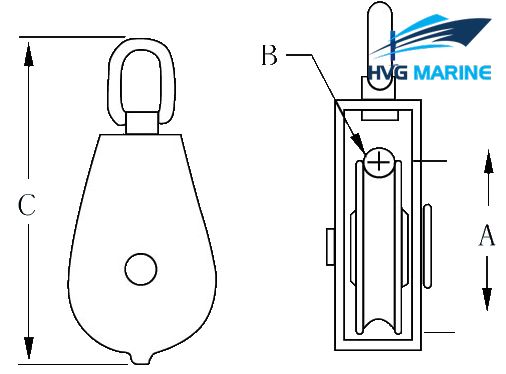

Technical specification:

Specification:

Item	WLL(kg)	Weight(kg)	A(mm)	B(mm)	C(mm)
M15	35	0.04	15	6	60
M20	75	0.06	20	8	73
M25	150	0.12	25	11	85
M32	250	0.17	32	12	95
M50	400	0.35	50	14	127
M75	800	0.85	75	15	165
M100	1500	1.46	100	18	200
