HVG RIGGING-LIFTING 0077

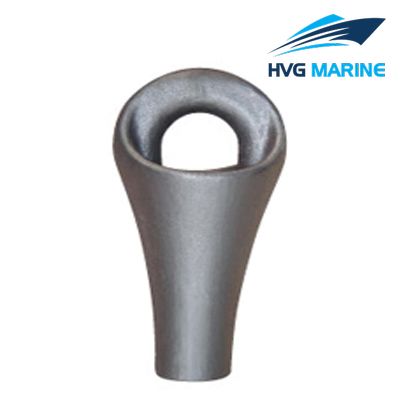

HVG RIGGING-LIFTING 0077: Pear Shaped Wire Rope Socket

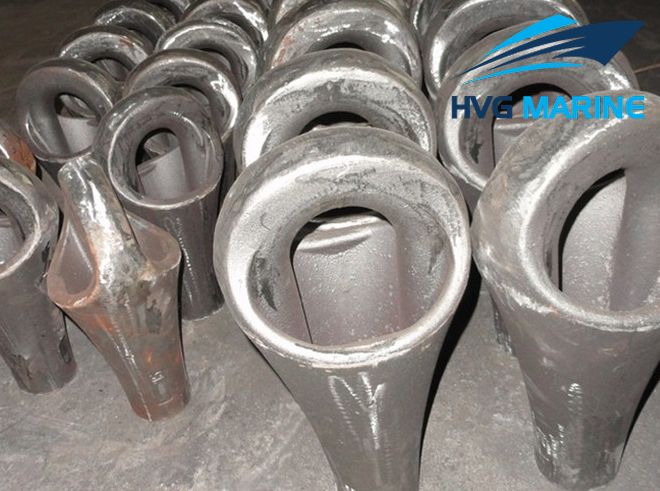

Pear shaped wire rope socket is drop forged from high quality alloy steel or casted form high strength steel. With special heat treatment, the X-ray nondestructive testing of it is level 1. It can be widely used in offshore oil engineering, lifting tugboat and other extreme environment.

Product Details:

1. Model: Pear shaped wire rope socket
2. Material: Alloy steel/ high strength steel
3. Technology: Casted or drop forged
4. Shape: Pear-shaped

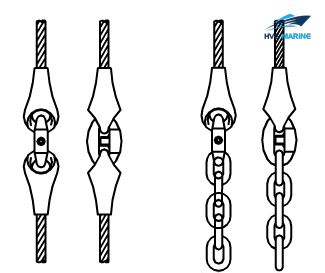

5. Usage: Wire rope fitting
6. Size: 10mm-56mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Code	Rope Dia.	A	B	E	F	H	I
Code	mm	mm	mm	mm	mm	mm	mm
HVG-01	10-11	69	48	12	12	24	12
HVG-02	12-13	79	56	15	14	25	14
HVG-03	14-15	91	64	17	16	29	16
HVG-04	16-17	103	70	19	18	31	18
HVG-05	18-19	114	84	21	19	38	20
HVG-06	20-21	129	84	23	21	42	22
HVG-07	22-24	140	100	26	23	44	26
HVG-08	25-27	158	100	28	25	48	29
HVG-09	28-30	171	120	31	27	56	31
HVG-10	31-33	190	120	32	29	58	35
HVG-11	34-36	203	142	36	31	64	37
HVG-12	37-39	225	142	39	35	68	40
HVG-13	40-42	242	166	43	37	70	43
HVG-14	43-45	265	166	47	41	72	47
HVG-15	46-48	288	166	49	43	80	51
HVG-17	56	340	220	60	54	90	59
