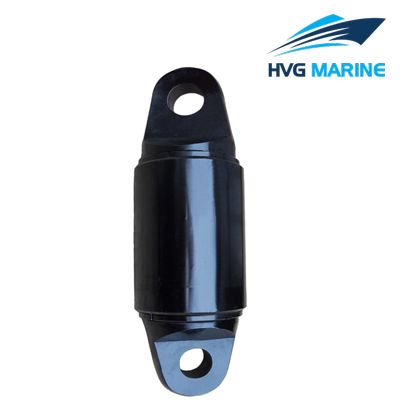

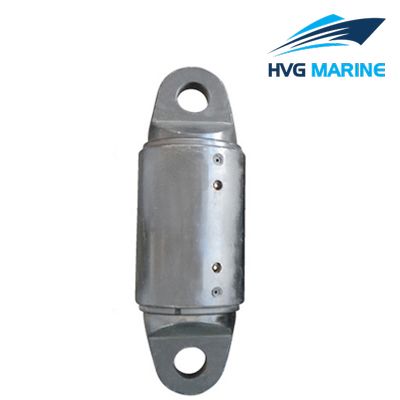

HVG RIGGING-LIFTING 0076: Anti-rotation Wire Rope Socket

Anti-rotation wire rope socket is general used for wire rope in port crane with higher hoisting height. Its main purpose is to release the twist of wire rope in use, and balance weight of wire rope. And the failure rate of it is very low.

Product Details:

1. Model: Anti-rotation wire rope socket
2. Material: Alloy steel
3. Technology: Drop forged
4. Usage: Wire rope fitting
5. SWL: 5T-50T
6. Weight: 27kg-176kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

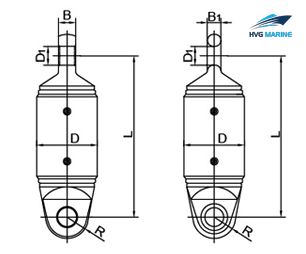

Item No.	SWL	Weight	B	B1	D	D1	L
Item No.	ton	kg	mm	mm	mm	mm	mm
HVG-01	5	27	40	28	130	43	330
HVG-02	10	60	48	32	170	53	450
HVG-03	16	80	56	40	190	57	590
HVG-04	25	103	64	50	228	61	470
HVG-05	40	140	75	60	230	75	480
HVG-06	50	176	100	85	260	85	600
