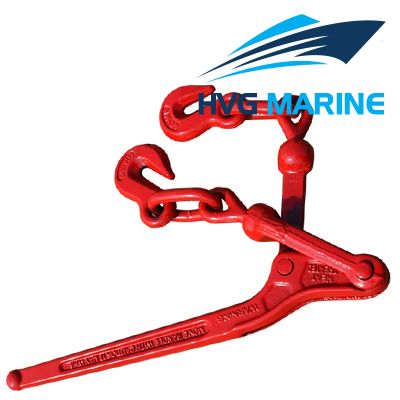

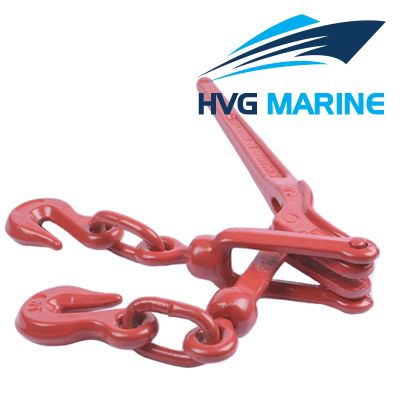

HVG RIGGING-LIFTING 0050: Lever Type Load Binder

Lever type load binder can be used to tighten chains with fixed length, and you need something else to lock the load binder. Compared with the traditional one, it is more flexible and can meet lifting requirements in all aspects. The safety work load limited of it is from 2200lbs to 11000lbs.

Product Details:

1. Model: Lever type load binder
2. Material: Carbon steel, melleable iron
3. Standard: US type, European type
4. Technology: Forged, casting
5. Surface: Power coating, Galvanized
6. SWL: 2200lbs-11000lbs
7. Weight: 3.52lbs-19.7lbs
8. Usage: Port, metallurgy, ship building, electricity,etc.
9. Packaging: Carton then on steel pallet
10. Special specification and marks can be made according to order quantity

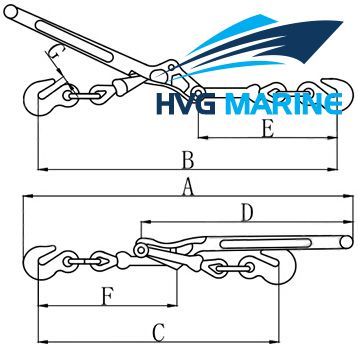

Technical specification:

Specification:

Chain Size	WLL	B.L.	Weight	A	B	C	D	E	H	G
in	lbs	lbs	lbs	mm	mm	mm	mm	mm	mm	mm
1/4-5/16	2200	7800	3.52	18.5	17.3	14.2	11.42	8.27	8.07	0.35
5/16-3/8	5400	19000	8.37	15.43	23.2	19.5	15.55	11.22	11.22	0.51
3/8-1/2	9200	28000	12.11	17.24	26.4	22.1	17.64	12.99	12.2	0.59
1/2-5/8	11000	44000	19.7	21	30.1	25.9	20.87	14.37	14.37	0.74
