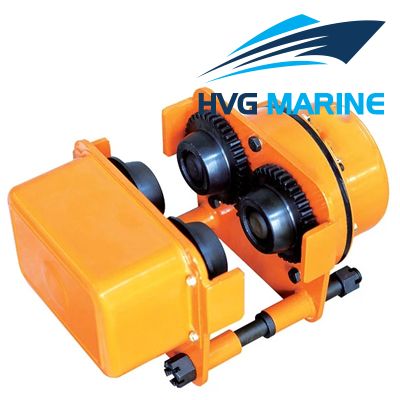

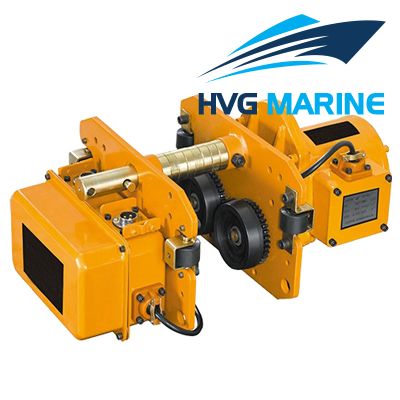

HVG RIGGING-LIFTING 0047: Monorail Motorized Trolley

Monorail motorized trolley work on the edge of I-steel track. Matching with electric hoist or chain block, it can be composed of bridge crane, single beam crane or cantilever crane. It is widely used in factories, mines, docks, warehouses, machinery processing, constraction site to install machinery, equipment and lifting goods.

Product Details:

1. Model: Monorail motorized trolley
2. Power source: Electric
3. Usage: Hoist
4. Lifting speed: 11-21m/min
5. Capacity: 0.5-10ton
6. I-beam: 52-220mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

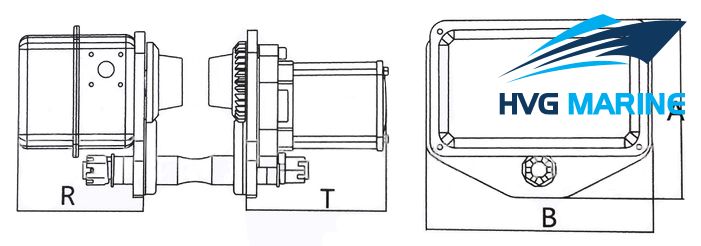

Item	Capacity	Lifting Speed	Motor	I-beam	A	B	R	T
Item	ton	m/min	Kw	mm	mm	mm	mm	mm
HS-0.5	0.5	12.2	0.12	52-153	196	248	142	159
HS-01	1	11/21	0.4	52-153	315	212	142	231
HS-02	2	11/21	0.4	82-178	325	220	142	231
HS-03	3	11/21	0.75	100-178	340	250	142	231
HS-05	5	11/21	0.75	100-178	400	291	142	231
HS-7.5	7.5	11/21	0.75	100-178	400	291	142	231
HS-10	10	11/21	0.75	150-220	500	370	142	231
