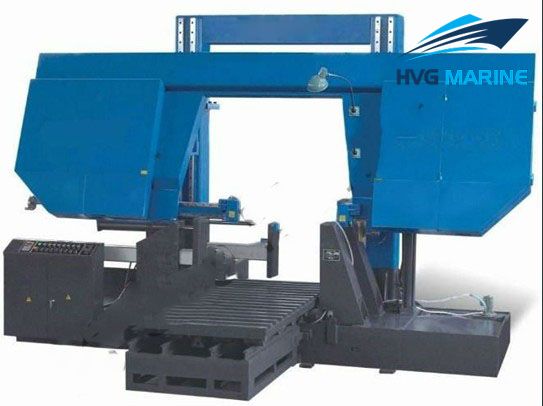

    HVG OTHER INDUSTRIAL EQUIPMENT 0042: Double-Column and Double-Cylinder Horizontal Band Sawing Machine

    Main features:

    • 1. High stability, narrow kerfs and material-saving.
    • 2. Automatic stopping regulation after completing cutting. Saw frame moves up.
    • 3. The machine is able to adjust the cutting speed according to the material, which extends service life of the saw blade.
    • 4. Saw blade uses adjustable load to make sure the machine works without fatigue.
    • Stepless speed can adjust to a best cutting effect.
    • 5. It adopts cursor to fix position, in order to set cutting size.
    • 6. Machine stops automatically when saw blade breaks (to ensure safety).
    • 7. Hydraulic control of blade tension (easy to operate and improve efficiency).

    Technical specification:

    • Technical Parameters

    Max. cutting range (mm)

    Round material¢500

    Sheet 500×700 (H*W)

    Cutting speed(m/min)

    Stepless adjustment

    Saw blade speed

    Stepless adjustment

    Blade dimension(mm)

    6470×41×1.3(L*W*T)

    Motor (KW)

    Main motor

    5.5

    Oil pump motor

    1.5

    Water pump motor

    0.12

    Oil tank capacity (L)

    Hydraulic compound

    100

    Cutting compound

    60

    Machine size (mm)

    3550×1750×1900

    Machine weight (kg)

    4200
