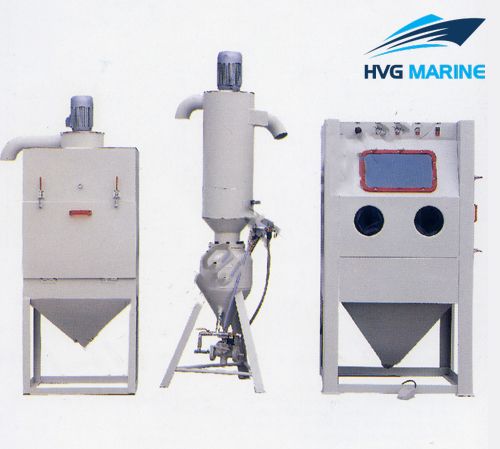

HVG OTHER INDUSTRIAL EQUIPMENT 0043: Sand Blast Machine

Design Model: PSLC8020

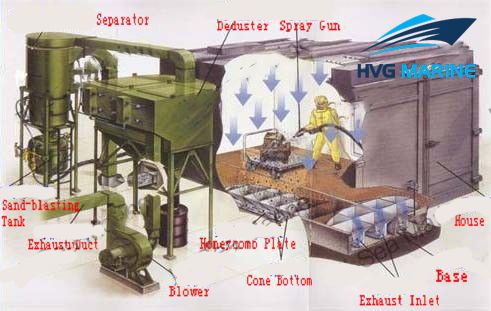

★Main Feature of Sand Blast Room

• A. Lower operating cost, energy saving
• B. Rectangle recycle pipe to forbid banked-up.
• C. No transmission to recycle sand, lower failure, maintenance-free.
• D. Honeycomb floor, save base cost.
• E. Each control system can be interlocked, greatly improving the speed of repair and maintenance.
• F. Standard modules, and easy maintenance or replacement.
• G. The wind come from the top of room, the bottom and side can inhale, so the dust downflow. Good visibility for work, and good for workers health.
• H. All the sand can be recycled instant, no leaving, no need clean.
• I. The body room use laminboard, looks good. Pavtrac skin on each side, good effect of soundproof.
• J. Modern techniques, dust emissions meet environmental requirements, no environmental contamination.

The Basic Requirements:

• The structure of workpiece: Casting parts, Structural parts
• The material of workpiece: Cast iron, Cast steel, Stainless Steel
• The workpiece façade: oil is forbid

Surface Treatment Technical of Workpiece:

1 Cleaning part: the entire surface
2 Surface Quality: Sa2.5
3 Cleaning speed≥20M2 /hour (single gun, the nozzle size is φ10mm)
4 Sand Size G30-40 (steel shot, quartz sand, glass bead, etc.)
