    HVG MARINE VALVE 0255

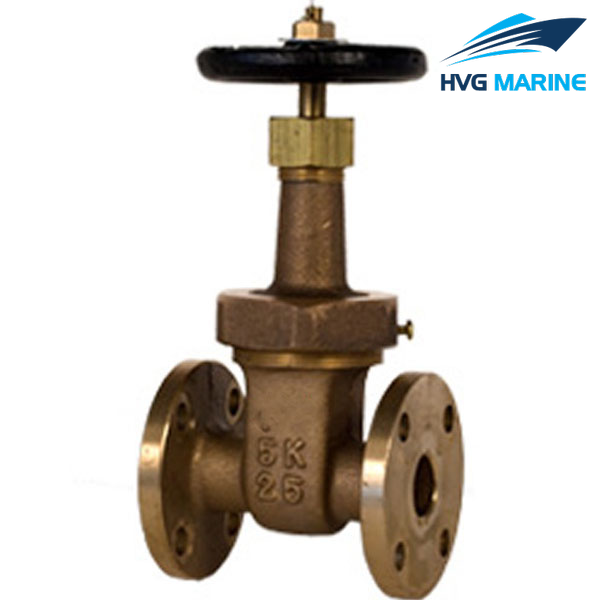

    HVG MARINE VALVE 0255: Marine Cast Bronze Rising Stem Type Gate Valve JIS F7367 5K

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:5k.

    5.DN:15mm-40mm.

    6.Main material:

    • Body/Bonnet:BC6;
    • Seat:BC6;
    • Stem:H62;
    • Disc:BC6.

    7.Application:Oil piping and water piping.

    8.Function:Such valves are used for on-off duty.

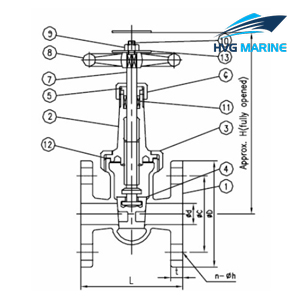

    Drawing of Marine Cast Bronze Rising Stem Type Gate Valve JIS F7367 5K :

    Technical specification:

    • Specification of Marine Cast Bronze Rising Stem Type Gate Valve JIS F7367 5K :
    Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
    (mm) (mm) (mm) (mm) (mm) (kgs)
    750951 15 90 80 60 4XD12 2.29
    750952 20 100 85 65 4XD12 2.98
    750953 25 110 95 75 4XD12 4.10
    750954 32 130 115 90 4XD15 5.79
    750955 40 140 120 95 4XD15 7.78
