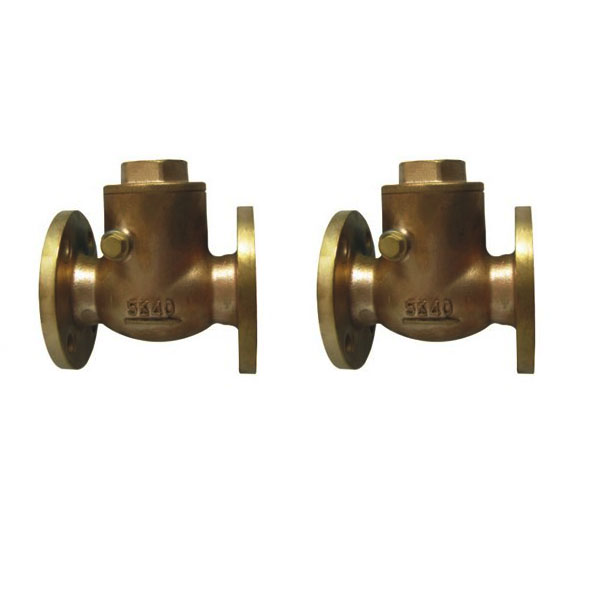

HVG MARINE VALVE 0253: Marine Bronze Swing Check Valve JIS F7371
1. Design standard: JIS F 7371-1996
2. Test: JIS F 7400-1996
3. Pressure: 5K
4. Material:
- (1). Body: BC6
- (2).Bonnet: BC6
- (3). Disc: BC6
HVG MARINE VALVE 0253
Technical specification:
- Marine Bronze Swing Check Valve JIS F7371 5K

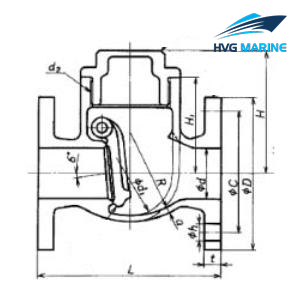

| Code | Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | Hole (nxd) | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) | |
| 751401 | 25 | 110 | 95 | 75 | 4XD12 | 2.24 |
| 751402 | 32 | 130 | 115 | 90 | 4XD15 | 3.07 |
| 751403 | 40 | 140 | 120 | 95 | 4XD12 | 4.34 |
