    HVG MARINE VALVE 0246

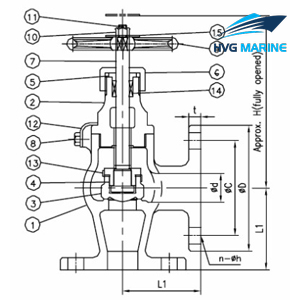

    HVG MARINE VALVE 0246: Marine Bronze Angle Valve JIS F7304 16K

    1. Marine Bronze Angle Valve JIS F7304 16K, produced at standard of JIS B2220.

    2. Main material: bronze

    3. Medium:

    • (1). Oil & flow water: 16kgf/cm2(1.57Mpa)
    • (2). Lenitic water ≤ 120 ℃, 22kgf/cm2(2.16Mpa)

    Technical specification:

    • Size:
    Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
    (mm) (mm) (mm) (mm) (mm) (kgs)
    750151 15 70 95 70 4XD15 2.73
    750152 20 75 100 75 4XD15 3.65
    750153 25 85 125 90 4XD19 5.16
    750154 32 95 135 100 4XD19 6.72
    750155 40 100 140 105 4XD19 8.13
