    HVG MARINE VALVE 0249

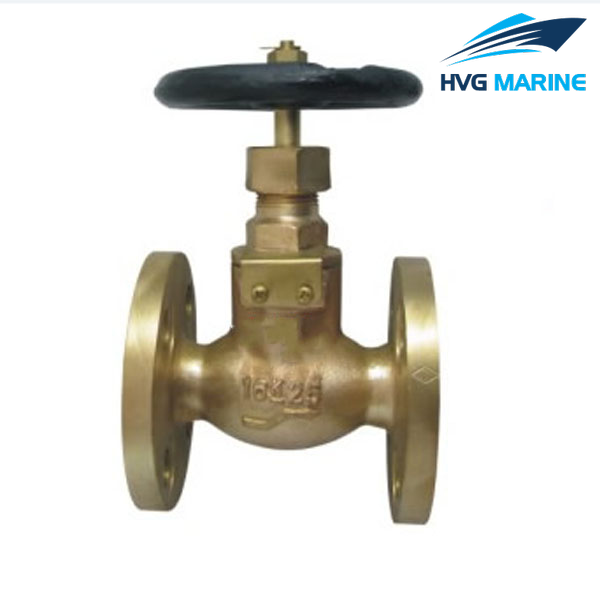

    HVG MARINE VALVE 0249: Marine Bronze Screw Down Check Globe Valve JIS F7351 5K

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:5K.

    5.DN:15mm-40mm.

    6.Main material:

    • Body/Bonnet:BC6;
    • Seat:BC6;
    • Stem:H62;
    • Disc:BC6.

    7.Application:Oil piping and water piping.

    8.Fnction:Such valves are used for on-off duty and preventing refluence.

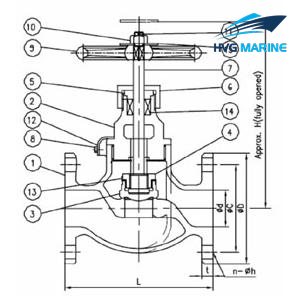

    Drawing of Marine Bronze Screw Down Check Globe Valve JIS F7351 5K :

    Technical specification:

    • Specification of Marine Bronze Screw Down Check Globe Valve JIS F7351 5K
    Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
    (mm) (mm) (mm) (mm) (mm) (kgs)
    751051 15 100 80 60 4XD12 1.96
    751052 20 110 85 65 4XD12 2.77
    751053 25 120 95 75 4XD12 3.41
    751054 32 140 115 90 4XD15 4.86
    751055 40 160 120 95 4XD15 6.30
