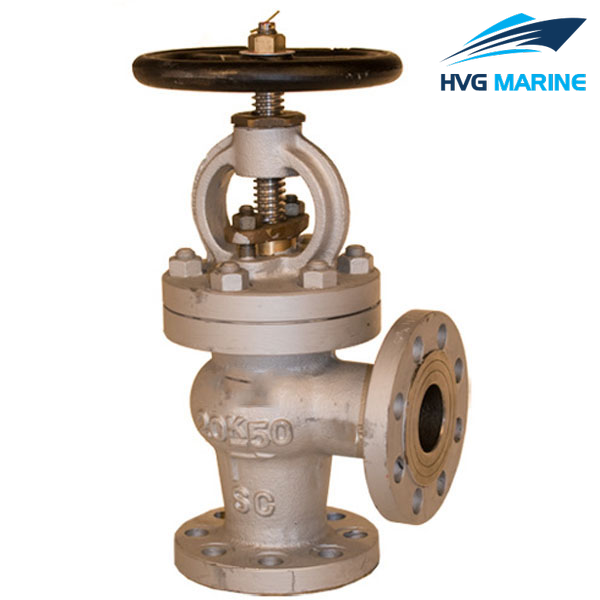

    HVG MARINE VALVE 0224: Marine Cast Steel Screw Down Check Angle Valve JIS F7474 20K

    1.Test standard:JISF7400.

    2.End sdtandard:JISB2220.

    3.End type:Flange.

    4.PN:20k.

    5.DN:32mm-250mm.

    6.Main material:

    • Body/Bonnet:ZG230-450;
    • Seat:SS410/BC6;
    • Stem:SS410/H62;
    • Disc:SS410/BC6.

    7.Application:Oil piping,water piping and steam piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

    Drawing of Marine Cast Steel Screw Down Check Angle Valve JIS F7474 20K :

    Technical specification:

    • Specification of Marine Cast Steel Screw Down Check Angle Valve JIS F7474 20K :
    Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
    (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
    32 100 135 100 4xΦ19 18 270 13.0
    40 1110 140 105 4xΦ19 18 290 15.1
    50 125 155 120 8xΦ19 18 305 19.9
    65 135 175 140 8xΦ19 20 345 26.7
    80 150 200 160 8xΦ23 22 385 38.8
    100 170 225 185 8xΦ23 24 440 54.2
    125 200 270 225 8xΦ25 26 500 83.0
    150 225 305 260 12xΦ25 28 550 115.0
    200 280 350 305 12xΦ25 30 630 189.0
    250 310 430 380 12xΦ27 34 725 296.0
