    HVG MARINE VALVE 0221

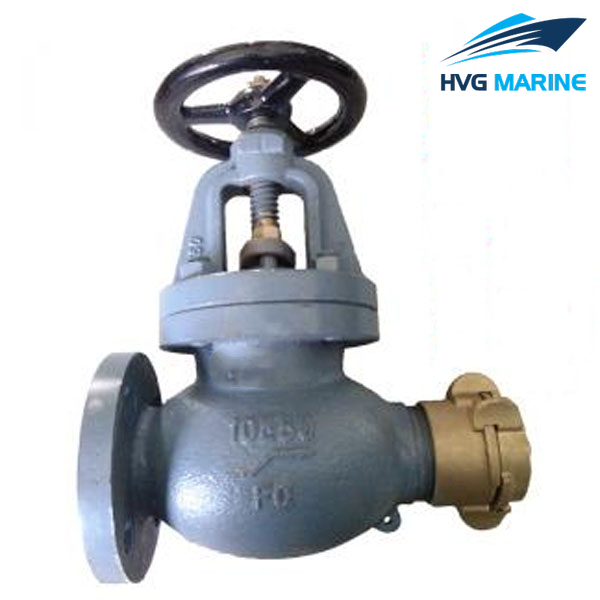

    HVG MARINE VALVE 0221: Marine Cast Iron Straight Hose Valve JIS F7333A 5K/10K

    1.Design standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:5k/10k.

    5.DN:50mm-65mm.

    6.Main material:

    • Body/Bonnet:FC20;
    • Seat:BC6/SS410;
    • Stem:BRASS/SS410;
    • Disc:BC6/SS410.

    7.Applicatin: Water piping.

    8.Function:Such valves are used for fire control.

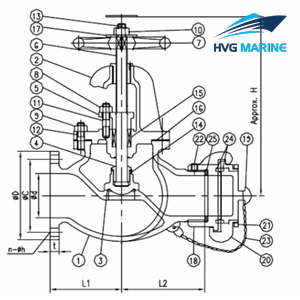

    Drawing of Marine Cast Iron Straight Hose Valve JIS F7333A 5K/10K :



    Technical specification:

    • Specification of Marine Cast Iron Straight Hose Valve JIS F7333A 5K/10K :
    Size L1 L2 Flange diam. (D) Pitch (C) Hole (nxd) t H1 Weight
    (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
    5K50 105 110 130 105 4xΦ15 16 270 14.7
    10K50 110 115 155 120 4xΦ19 20 285 18.9
    10K65 135 140 175 140 4-xΦ19 22 310 28.2
