    HVG MARINE VALVE 0223

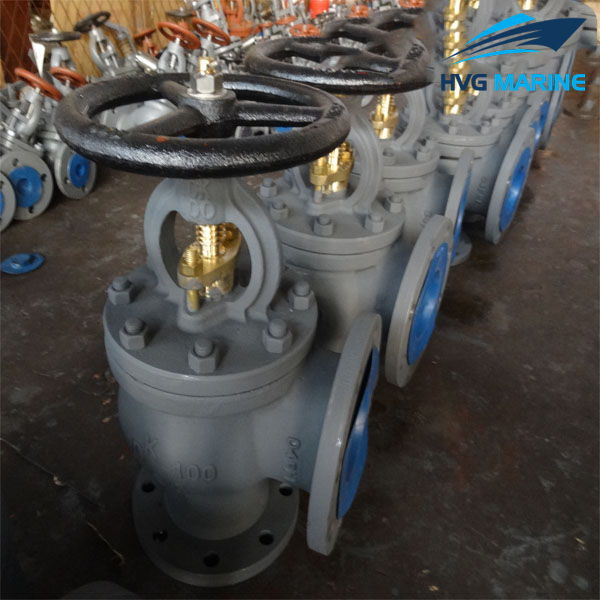

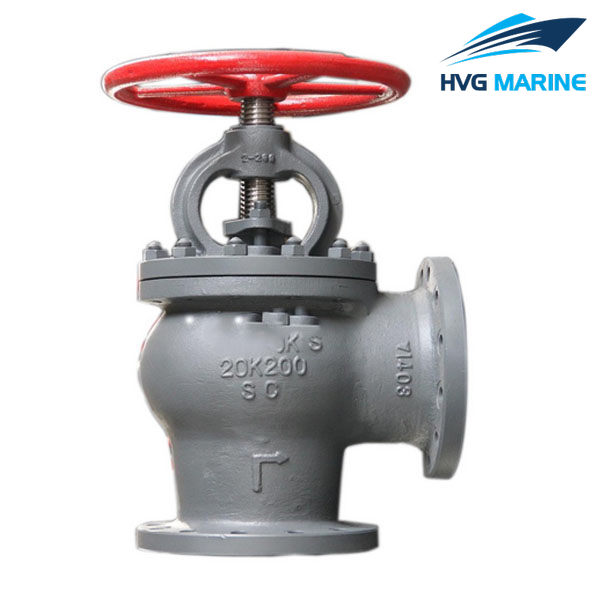

    HVG MARINE VALVE 0223: Marine Cast Steel Angle Valve JIS F7314 20K

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:20k.

    5.DN:32mm-250mm.

    6.Main material:

    • Body/Bonnet:ZG230-450;
    • Seat:SS410/BC6;
    • Stem:SS410/H62;
    • Disc:SS410/BC6.

    7.Application:Oil piping,water piping,gas piping and steam piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

    Drawing of Marine Cast Steel Angle Valve JIS F7314 20K :

    Technical specification:

    • Specification of Marine Cast Steel Angle Valve JIS F7314 20K :
    Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
    (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
    32 100 135 100 4-19 18 270 13.0
    40 1110 140 105 4-19 18 290 15.2
    50 125 155 120 8-19 18 305 20.0
    65 135 175 140 8-19 20 345 26.9
    80 150 200 160 8-23 22 385 38.9
    100 170 225 185 8-23 24 440 54.4
    125 200 270 225 8-25 26 500 80.7
    150 225 305 260 12-25 28 550 112.3
    200 280 350 305 12-25 30 630 183.0
    250 310 430 380 12-27 34 725 285.9
