    HVG MARINE VALVE 0175

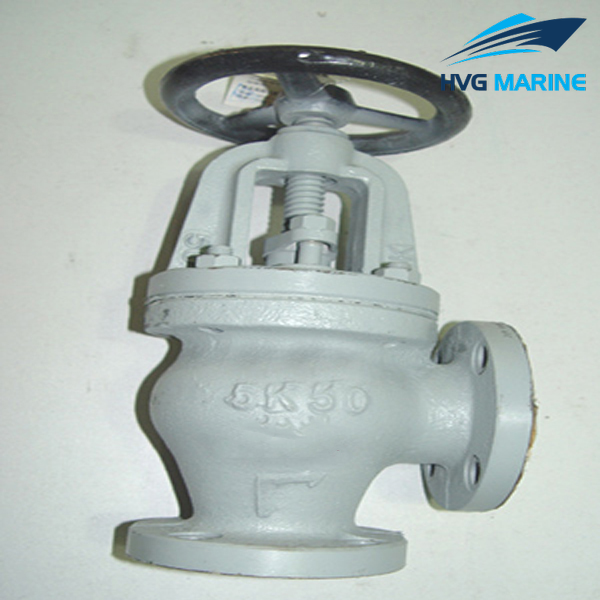

    HVG MARINE VALVE 0175: Marine Cast Iron Angle Globe Valve JIS F7306 5k

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:5k.

    5.DN:50mm-400mm.

    6.Main material:

    • Body/Bonnet:FC-HT200;
    • Seat:SS410/BC6;
    • Stem:SS410/H62;
    • Disc:SS410/BC6.

    7.Application:Oil piping,water piping and steam piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

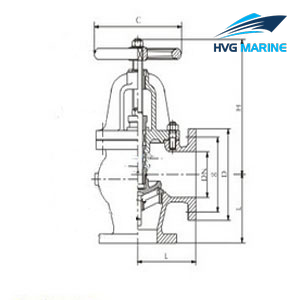

    Drawing of Marine Cast Iron Angle Globe Valve JIS F7306 5k:

    Technical specification:

    • Specification of Marine Cast Iron Angle Globe Valve JIS F7306 5k
    IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
    750216 F7306

    5k

    Globe

    		 50 100 130 105 4xΦ15 12.90
    750217 65 115 155 130 4xΦ15 18.20
    750218 80 130 180 145 4xΦ19 23.40
    750219 100 150 200 165 8xΦ19 33.70
    750220 125 170 235 200 8xΦ19 46.20
    750221 150 190 265 230 8xΦ19 63.40
    750222 200 220 320 280 8xΦ23 105
    750223 250 275 385 345 12xΦ23 176
    750224 300 310 430 390 12xΦ23 243
    750225 350 360 480 435 12xΦ25 335
    750226 400 395 540 495 16xΦ25 459
