MARINE VALVE 0174
    • MARINE VALVE 0174
    HVG MARINE VALVE 0174

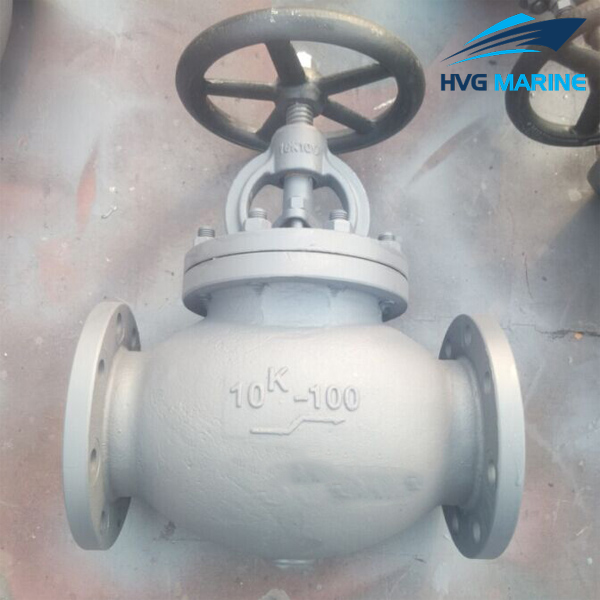

    HVG MARINE VALVE 0174: Marine Cast Iron Straight Globe Valve JIS F7307 10k

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:10k.

    5.DN.50mm-300mm.

    6.Main material:

    • Body/Bonnet:FC-HT200;
    • Seat:SS410/BC6;
    • Stem:SS410/H62;
    • Disc:SS410/BC6.

    7.Aplication:Oil piping,water piping and steam piping.

    8.Function:Such valves are used fou on-off duty and regulating the flow rate.

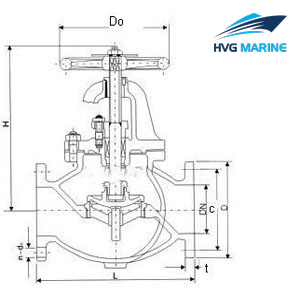

    Drawing of Marine Cast Iron Straight Globe Valve JIS F7307 10k:

    Technical specification:

    • Specification of Marine Cast Iron Straight Globe Valve JIS F7307 10k:
    IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole Weight/kg
    750231 F7307

    10k

    Globe

    		 50 220 155 120 4xΦ19 19.90
    750232 65 270 175 140 4xΦ19 28.70
    750233 80 300 185 150 8xΦ19 32.40
    750234 100 350 210 175 8xΦ19 48.70
    750235 125 420 250 210 8xΦ23 73.10
    750236 150 490 280 240 8xΦ23 104.00
    750237 200 570 330 290 12xΦ23 162.00
    750238 250 740 400 355 12xΦ25 304.00
    750239 300 840 445 400 16xΦ25 458.00
