    HVG MARINE VALVE 0172

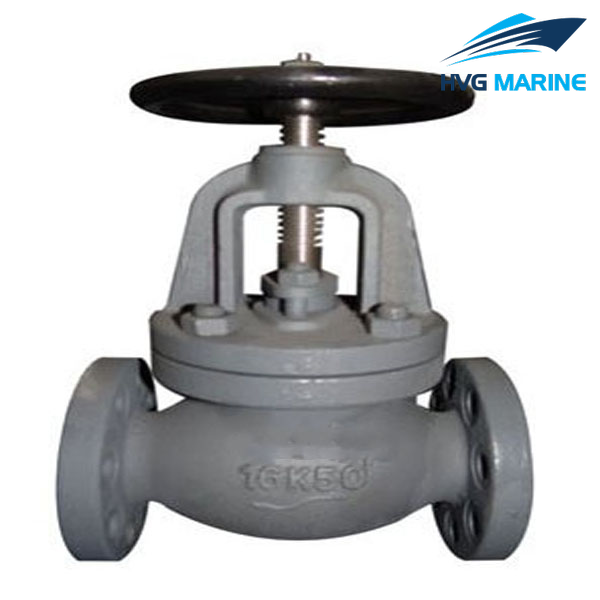

    HVG MARINE VALVE 0172: Marine Cast Iron Straight Globe Valve JIS F7309 16k

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:16k.

    5.DN:50mm-200mm.

    6.Main material：

    • Body/Bonnet:HT200;
    • Seat:SS410/BC6;
    • Stem:SS410/H62;
    • Disc:SS410/BC6.

    7.Application:Oil piping,water piping and steam piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

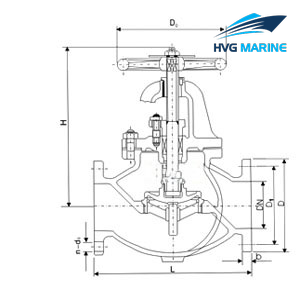

    Drawing of Marine Cast Iron Straight Globe Valve JIS F7309 16k:

    Technical specification:

    • Specificaton of Marine Cast Iron Straight Globe Valve JIS F7309 16k:
    IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
    750261 F7309

    16k

    Globe

    		 50 220 155 120 8xΦ19 19.60
    750262 65 270 175 140 8xΦ19 28.30
    750263 80 300 200 160 8xφ23 40.40
    750264 100 350 225 185 8xΦ23 56.90
    750265 125 430 270 225 8xΦ25 89.50
    750266 150 500 305 260 12xΦ25 123.00
    750267 200 570 350 305 12xΦ25 188.00
