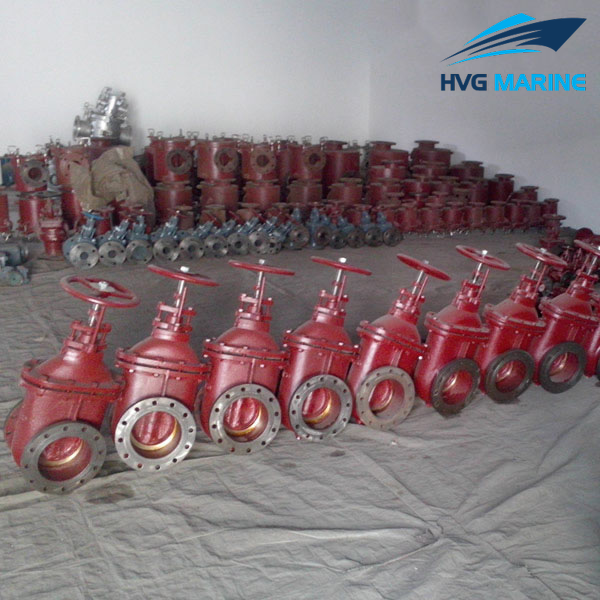

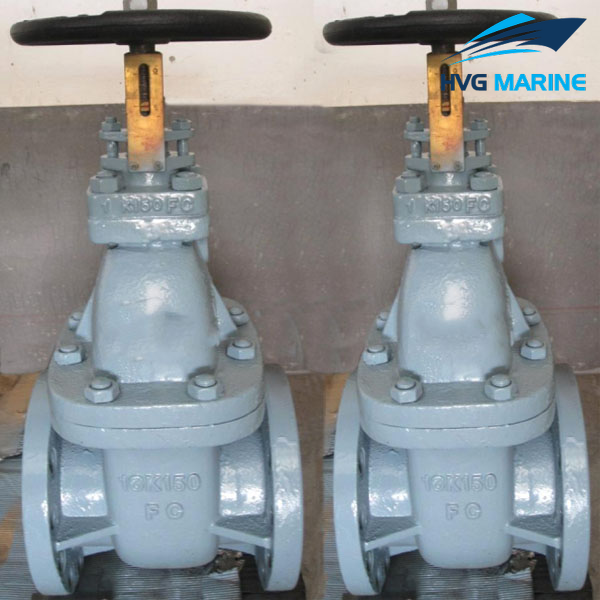

HVG MARINE VALVE 0168: Marine Cast Iron Gate valve JIS F7369 16k
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:16k.
5.DN:50mm-400mm.
6.Main material:
7.Application:Oil piping,water piping and steam piping.
8.Function:Such valves are used for on-off duty.

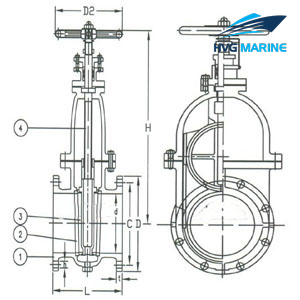

Drawing of Marine Cast Iron Gate valve JIS F7369 16k:
|
DN/mm |
Face to face/L(mm) |
Flange diam./D(mm) |
Flange pitch/C(mm) |
Flange hole/n*d(mm) |
Weight/kg |
|
50 |
220 |
175 |
140 |
8xΦ19 |
20.40 |
|
65 |
220 |
175 |
140 |
8xΦ19 |
30.40 |
|
80 |
234 |
200 |
160 |
8xΦ23 |
36.30 |
|
100 |
254 |
225 |
185 |
8xΦ23 |
54.40 |
|
125 |
274 |
270 |
225 |
8xΦ25 |
72.50 |
|
150 |
294 |
305 |
260 |
12xΦ25 |
94.60 |
|
200 |
328 |
350 |
305 |
12xΦ25 |
149.60 |
|
250 |
388 |
430 |
380 |
12xΦ27 |
243.50 |
|
300 |
490 |
480 |
430 |
16xΦ27 |
430.00 |
|
350 |
540 |
540 |
480 |
16xΦ33 |
580.00 |
|
400 |
610 |
605 |
540 |
16xΦ33 |
780.00 |
