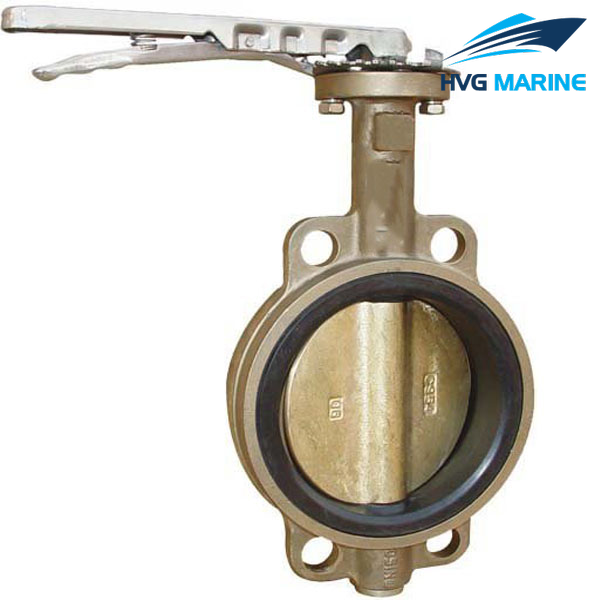

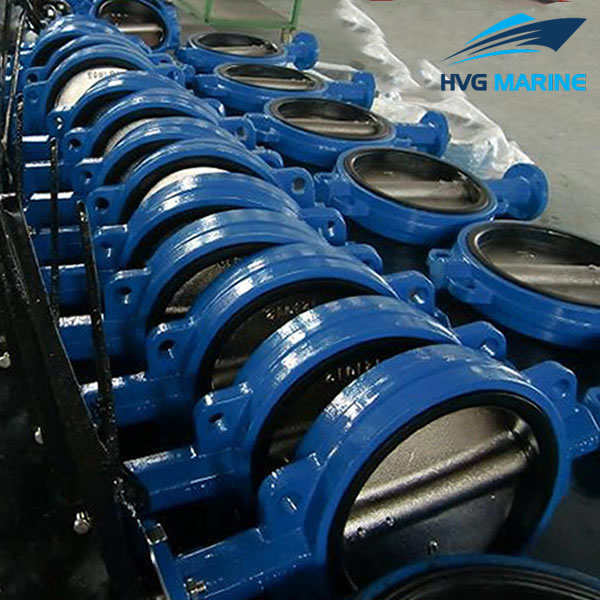

Marine Wafer Type Butterfly Valve JIS F7480 5k/10k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:wafer type.
4.PN:5k/10k.
5.DN:50mm-400mm.
6.Main material:
7.Application:Oil piping,water piping and gas piping.
8.Test pressure:
|
PN |
5k |
10k |
|
Body/Mpa |
1.03 |
2.06 |
|
Seat/Mpa |
0.76 |
1.47 |

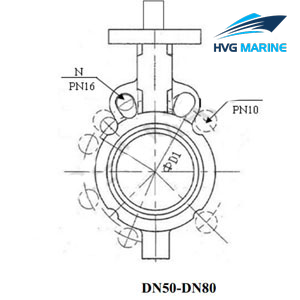

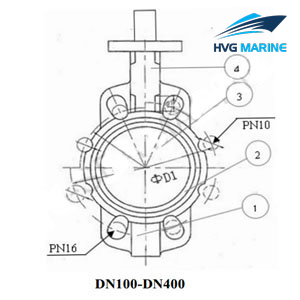

Drawing of Marine Wafer Type Butterfly Valve JIS F7480 5k/10k:
Marine Wafer Type Butterfly Valve JIS F7480 5k(handle＆worm)
|
DN/mm |
D/mm |
D1/mm |
L/mm |
N/mm |
Weight/kg |
|
50 |
94 |
105 |
43 |
4xΦ15 |
7.8 |
|
65 |
117 |
130 |
46 |
4xΦ15 |
11 |
|
80 |
127 |
145 |
46 |
4xΦ21 |
15 |
|
100 |
152 |
165 |
52 |
8xΦ19 |
18 |
|
125 |
183 |
200 |
56 |
8xΦ21 |
24 |
|
150 |
213 |
230 |
56 |
8xΦ21 |
35 |
|
200 |
263 |
280 |
60 |
8xΦ23 |
57 |
|
250 |
327 |
345 |
68 |
12xΦ25 |
90 |
|
300 |
370 |
390 |
78 |
12xΦ25 |
121 |
|
350 |
414 |
435 |
78 |
12xΦ27 |
177 |
|
400 |
474 |
495 |
102 |
16xΦ25 |
220 |
Marine Wafer Type Butterfly Valve JIS F7480 10k(handle＆worm)
|
DN/mm |
D/mm |
D1/mm |
L/mm |
N/mm |
Weight/kg |
|
50 |
94 |
120 |
43 |
4xΦ21 |
7.8 |
|
65 |
117 |
140 |
46 |
4xΦ21 |
11 |
|
80 |
127 |
150 |
46 |
8xΦ21 |
15 |
|
100 |
152 |
175 |
52 |
8xΦ21 |
18 |
|
125 |
183 |
210 |
56 |
8xΦ25 |
24 |
|
150 |
213 |
240 |
56 |
8xΦ25 |
35 |
|
200 |
263 |
290 |
60 |
12xΦ23 |
57 |
|
250 |
327 |
355 |
68 |
12xΦ25 |
90 |
|
300 |
370 |
400 |
78 |
16xΦ27 |
121 |
|
350 |
414 |
445 |
78 |
16xΦ27 |
177 |
|
400 |
474 |
510 |
102 |
16xΦ29 |
220 |
