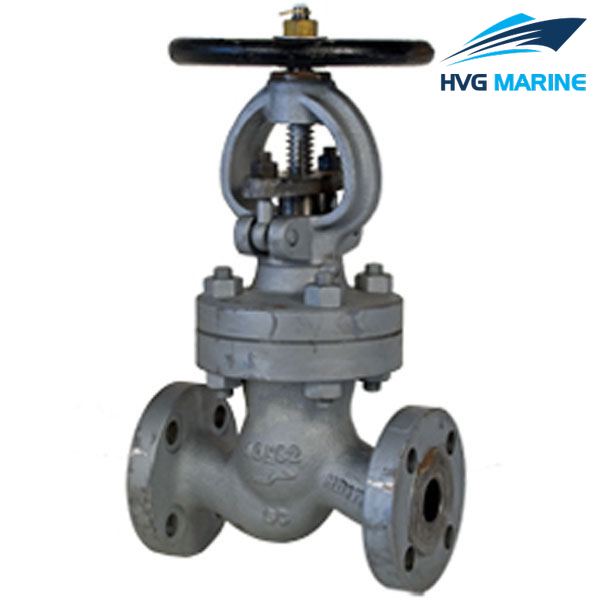

HVG MARINE VALVE 0169: Marine Cast Steel Globe Valve JIS F7317 40k
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:40k.
5.DN:32mm-150mm.
6.Main material:
7.Application:Air piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.

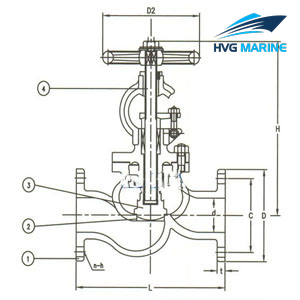

Drawing of Marine Cast Steel Globe Valve JIS F7317 40k
|
IMPA |
DN/mm |
Face to face/L(mm) |
Flange diam./D(mm) |
Flange pitch/Cmm) |
Flange hole/n*d(mm) |
Weight/kg |
|
750471 |
32 |
229 |
140 |
105 |
4xΦ19 |
25.40 |
|
750472 |
40 |
241 |
160 |
120 |
4xΦ23 |
30.20 |
|
750473 |
50 |
292 |
165 |
130 |
8xΦ19 |
41.00 |
|
750474 |
65 |
330 |
200 |
160 |
8xΦ23 |
62.30 |
|
750475 |
80 |
356 |
210 |
170 |
8xΦ23 |
79.00 |
|
750476 |
100 |
432 |
250 |
205 |
8xΦ25 |
140.00 |
|
750477 |
125 |
508 |
300 |
250 |
8xΦ27 |
197.00 |
|
750478 |
150 |
559 |
355 |
295 |
12xΦ33 |
298.00 |
