    HVG MARINE VALVE 0158

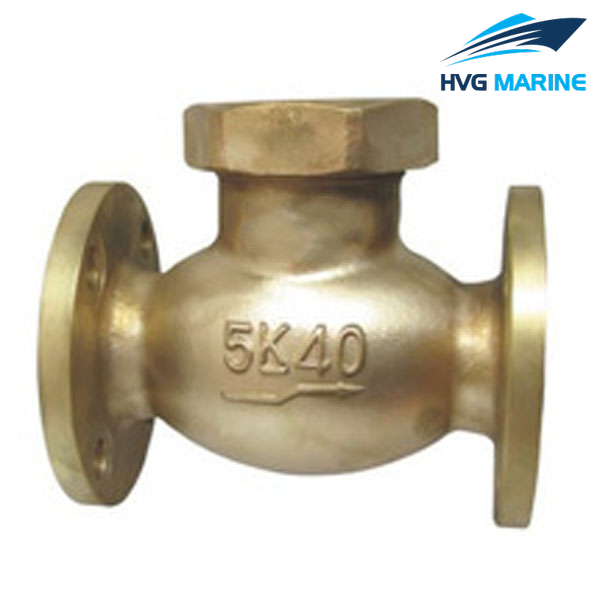

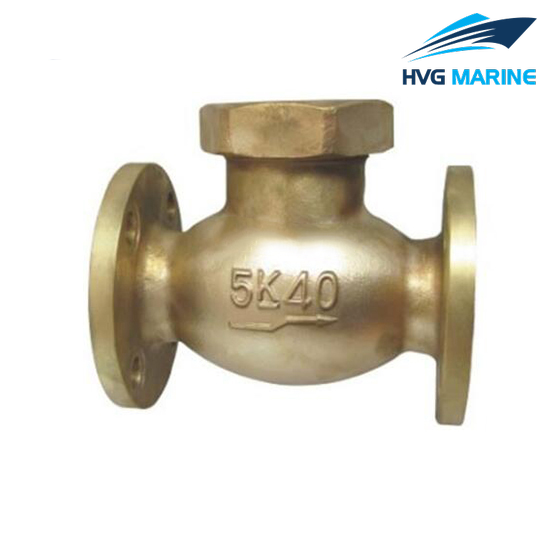

    HVG MARINE VALVE 0158: Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k

    1.Test standard: JISF7400.

    2.End standard: JISB2220.

    3.End type:Flange.

    4.Pressure: 5k.

    5.DN: 15mm-40mm.

    6.Main material:

    • Body/Bonnet: BC6;
    • Seat: BC6;
    • Disc: BC6.

    7.Application:Oil piping,water piping and gas piping.

    8.Function: Such valves are used for preventing refluence.

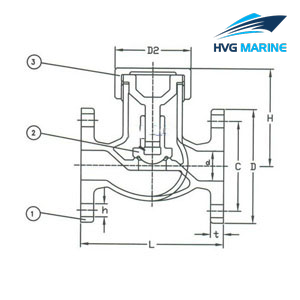

    Drawing of Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k:

    Technical specification:

    • Specification of Marine Cast Bronze Lift Check Globe Valve JIS F7415 5k

    IMPA

    DN

    Face to face/L(mm)

    Flange diam./D(mm)

    Flange pitch/C(mm)

    Flange hole/n*d(mm)

    Weight/kg

    751341

    15

    100

    80

    60

    4xΦ12

    1.62

    751342

    20

    110

    85

    65

    4xΦ12

    2.17

    751343

    25

    120

    95

    75

    4xΦ12

    2.80

    751344

    32

    140

    115

    90

    4xΦ15

    3.92

    751345

    40

    160

    120

    95

    4xΦ15

    5.49
