    HVG MARINE VALVE 0157

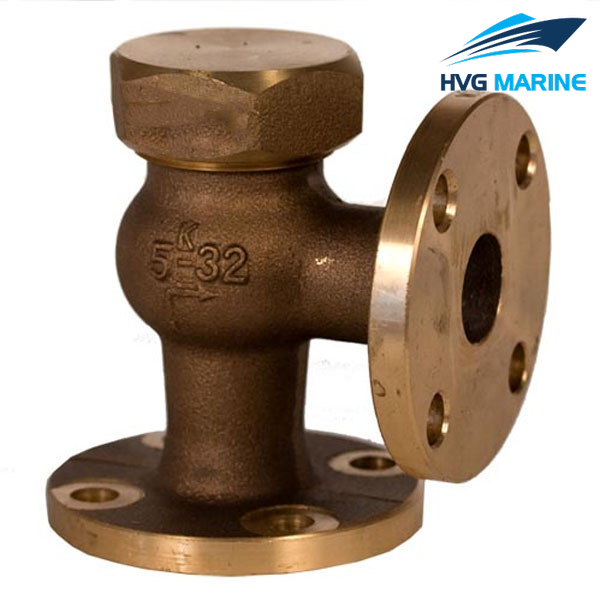

    HVG MARINE VALVE 0157: Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k

    1.Test standard:JISF7400

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN；5k.

    5.DN:15mm-40mm.

    6.Main material:

    • Body/Bonnet:BC6;
    • Seat:BC6;
    • Disc:BC6.

    7.Application:Oil piping,water piping and gas piping.

    8.Function:Such valves are used for preventing refluence.

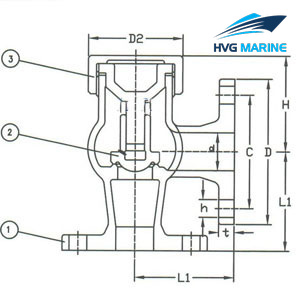

    Drawing of Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k:

    Technical specification:

    • Specification of Marine Cast Bronze Lift Check Angle Valve JIS 7416 5k:

    IMPA

    DN/mm

    Face to face/L(mm)

    Flange diam./D(mm)

    Flange pitch/C(mm)

    Flange hole/n*d(mm)

    Weight/kg

    751346

    15

    55

    80

    60

    4xΦ12

    1.57

    751347

    20

    60

    85

    65

    4xΦ12

    2.07

    751348

    25

    65

    95

    75

    4xΦ12

    2.65

    751349

    32

    80

    115

    90

    4xΦ15

    3.68

    751350

    40

    85

    120

    95

    4xΦ15

    4.95
