MARINE VALVE 0155
    • MARINE VALVE 0155
    HVG MARINE VALVE 0155

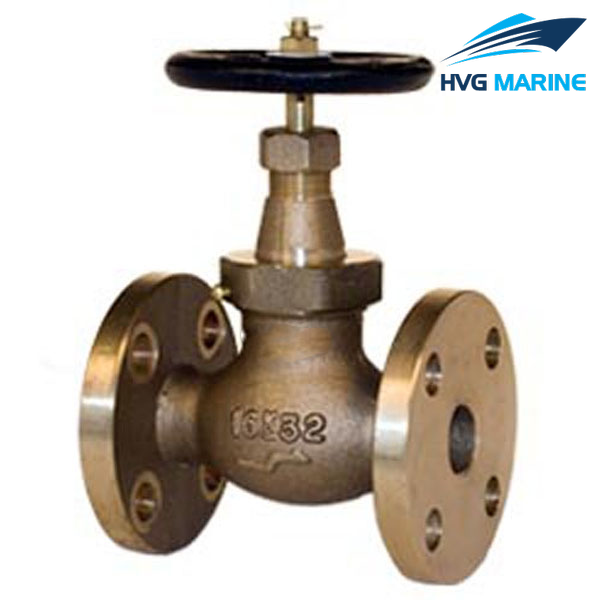

    HVG MARINE VALVE 0155: Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k

    1.Test standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:16k.

    5.DN:15mm-40mm.

    6.Main material:

    • Body/Bonnet:BC6;
    • Seat:BC6;
    • Stem:BRASS;
    • Disc:BC6.

    7.Application:Seawater piping and fresh water piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

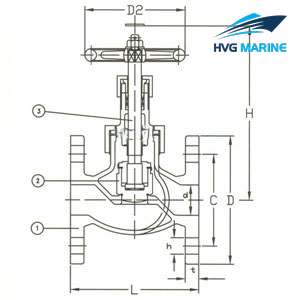

    Drawing of Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k:

    Technical specification:

    • Specification of Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k:

    DN/mm

    Face to face/L(mm)

    Flange diam./D(mm)

    Flange pitch/C(mm)

    Flange hole/n*d(mm)

    15

    110

    95

    70

    4xΦ15

    20

    120

    100

    75

    4xΦ15

    25

    130

    125

    90

    4xΦ19

    32

    160

    135

    100

    4xΦ19

    40

    180

    140

    105

    4xΦ19
