    HVG MARINE VALVE 0151

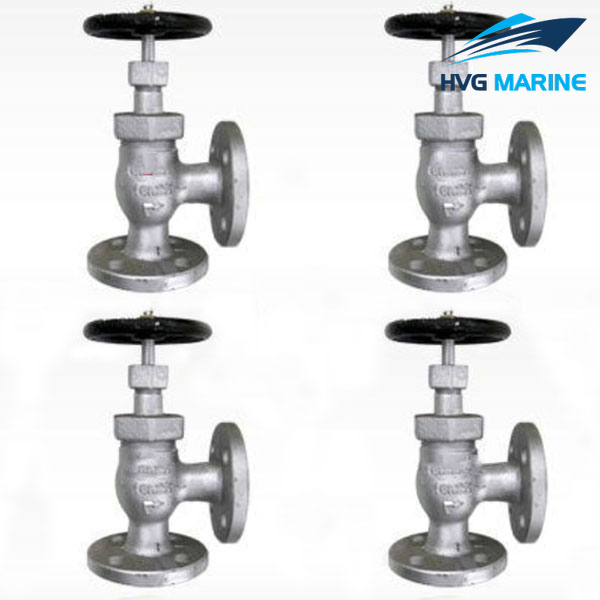

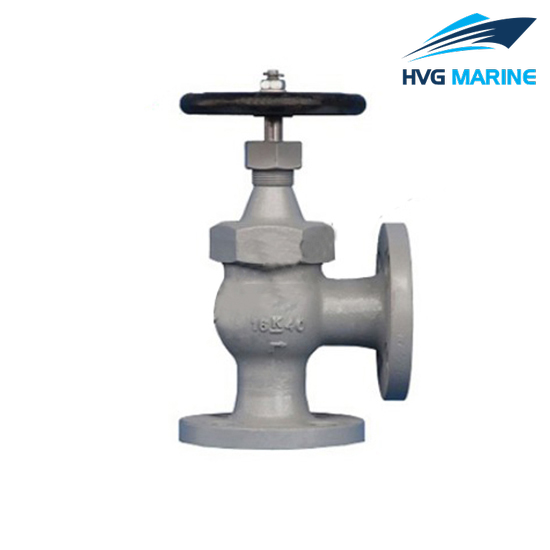

    HVG MARINE VALVE 0151: Marine Cast Iron angle valve JIS F7324(C) 16k

    1.Test standard: JISF7400.

    2.End standard: JISB2220.

    3.End type:Flange.

    4.Pressure: 16k.

    5.DN:15mm-40mm.

    6.Main material:

    • Body/Bonnet: FCD450;
    • Seat: SS410/BC6;
    • Stem: SS410/H62;
    • Disc: SS410/BC6.

    7.Application:Oil piping and water piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

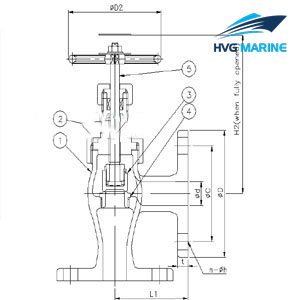

    Drawing of Marine Cast Ductile Iron angle valve JIS F7324(C) 16k:

    Technical specification:

    • Specification of Marine Cast Iron angle valve JIS F7324(C) 16k:

    IMPA

    DN/mm

    Face to face/L(mm)

    Flange diam/D(mm)

    Flange pitch/C(mm)

    Flange hole/n*d(mm)

    Weight/kg

    750331

    15

    70

    95

    70

    4xΦ15

    2.73

    750332

    20

    75

    100

    75

    4xΦ15

    3.65

    750333

    25

    85

    125

    90

    4xΦ15

    5.16

    750334

    32

    95

    135

    100

    4xΦ15

    6.72

    750335

    40

    100

    140

    105

    4xΦ19

    8.13
